Components [12/2019 - 09/2020]

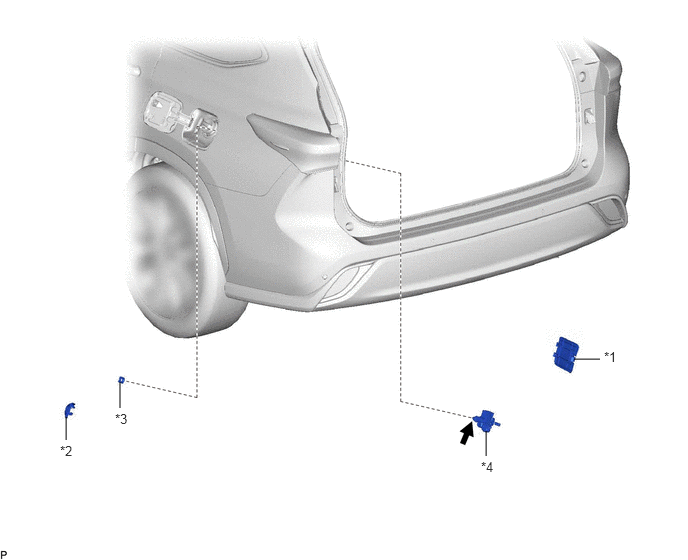

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components [12/2019 - 09/2020]
GTY846326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DECK TRIM SIDE SERVICE HOLE COVER *2 FUEL FILLER OPENING LID LOCK COVER
*3 FUEL FILLER OPENING LID LOCK RETAINER *4 FUEL LID LOCK WITH MOTOR ASSEMBLY
MP grease - -
