Components [09/2020 - ]

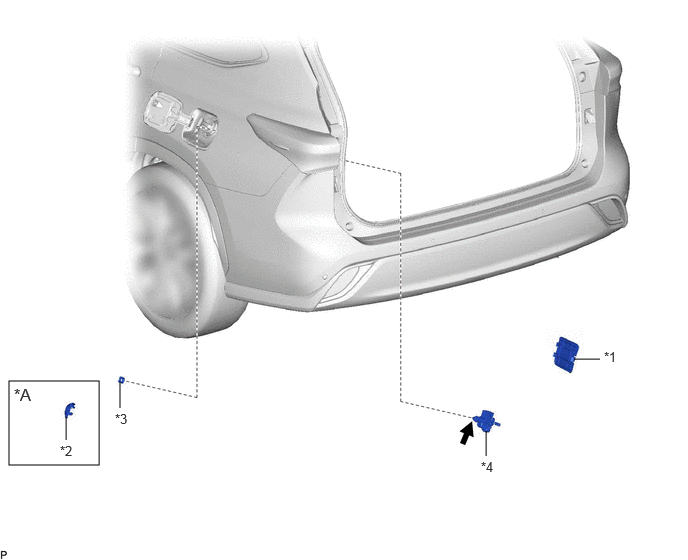

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components [09/2020 - ]
GTY1006547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Cover - -
*1 DECK TRIM SIDE SERVICE HOLE COVER *2 FUEL FILLER OPENING LID LOCK COVER
*3 FUEL FILLER OPENING LID LOCK RETAINER *4 FUEL LID LOCK WITH MOTOR ASSEMBLY
MP grease - -
