Removal [09/2020 - ]: Procedure

  1. REMOVE DECK TRIM SIDE SERVICE HOLE COVER

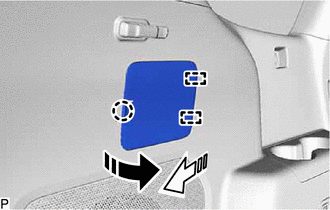

    1. Disengage the claw and 2 guides to remove the deck trim side service hole cover as shown in the illustration.
      GTY852065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE FUEL FILLER OPENING LID LOCK COVER (w/ Cover)

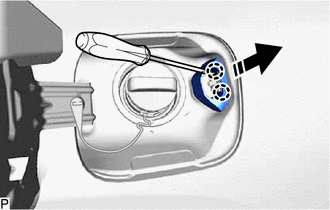

    1. Using a screwdriver, disengage the 2 claws and remove the fuel filler opening lid lock cover as shown in the illustration.
      GTY863555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

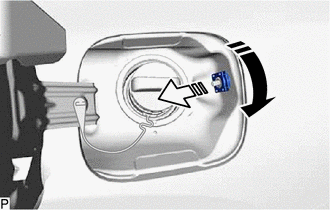

    1. Remove the fuel filler opening lid lock retainer as shown in the illustration.
      GTY934105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  4. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

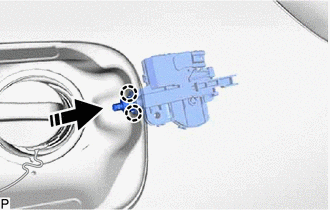

    1. Disengage the 2 claws as shown in the illustration.
      GTY875353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

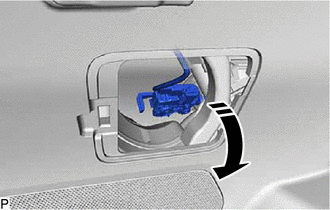

    2. Pull the fuel lid lock with motor assembly as shown in the illustration.
      GTY940700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull in this Direction

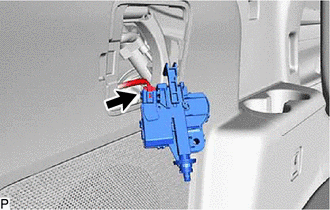

    3. Disconnect the connector to remove the fuel lid lock with motor assembly.
      GTY938084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
