Installation [09/2020 - ]: Procedure

  1. INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY
    1. Apply MP grease to the sliding parts of the fuel lid lock with motor assembly.
    2. Connect the connector.

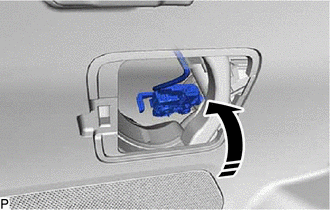

    3. Temporarily install the fuel lid lock with motor assembly as shown in the illustration.
      GTY910415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Temporarily install in this Direction

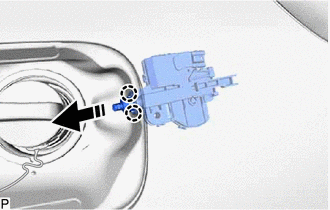

    4. Engage the 2 claws to install the fuel lid lock with motor assembly as shown in the illustration.
      GTY898047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL FUEL FILLER OPENING LID LOCK RETAINER

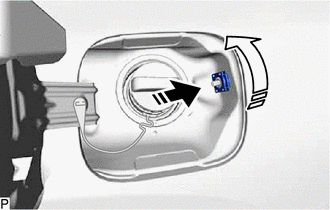

    1. Install the fuel filler opening lid lock retainer as shown in the illustration.
      GTY880086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  3. INSTALL FUEL FILLER OPENING LID LOCK COVER (w/ Cover)

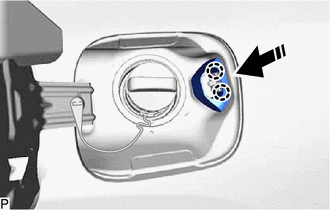

    1. Engage the 2 claws to install the fuel filler opening lid lock cover as shown in the illustration.
      GTY869420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

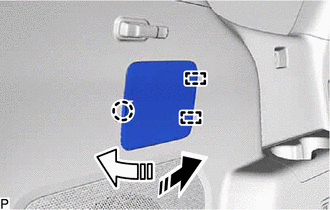

  4. INSTALL DECK TRIM SIDE SERVICE HOLE COVER
    1. Engage the 2 guides and claw to install the deck trim side service hole cover as shown in the illustration.
      GTY858039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
