DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation System - Service Information
>>
Multi-Display Ecu
>>
Components [12/2019 - 10/2022]
Components [12/2019 - 10/2022]

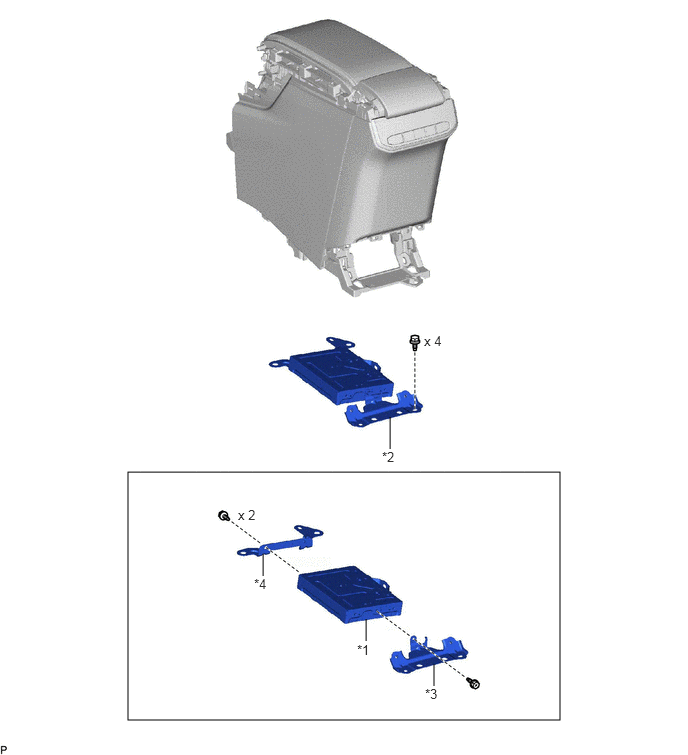

Fig 1: Multi-Display ECU Replacement Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INTEGRATION CONTROL SUB-ASSEMBLY
*2
INTEGRATION CONTROL SUB-ASSEMBLY WITH BRACKET
*3
NO. 1 CONSOLE BOX MOUNTING BRACKET
*4
NO. 1 METER BRACKET SUB-ASSEMBLY
