Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE INTEGRATION CONTROL SUB-ASSEMBLY WITH BRACKET

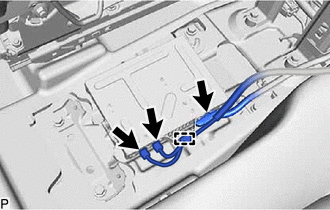

    1. Disconnect the 3 connectors.
      GTY846693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

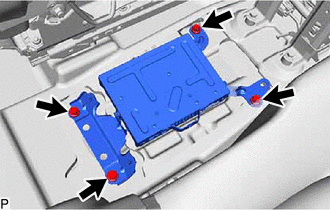

    3. Remove the 4 bolts and integration control sub-assembly with bracket.
      GTY846694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET

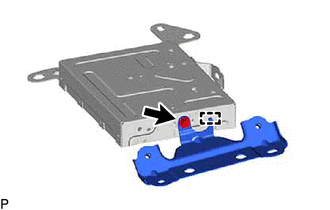

    1. Remove the screw.
      GTY846695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to No. 1 console box mounting bracket.
  4. REMOVE NO. 1 METER BRACKET SUB-ASSEMBLY

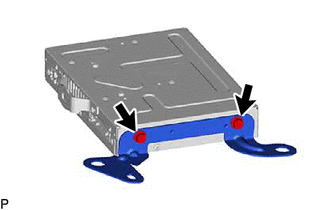

    1. Remove the 2 screws and No. 1 meter bracket sub-assembly.
      GTY846696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INTEGRATION CONTROL SUB-ASSEMBLY
