Components [12/2019 - 10/2022]

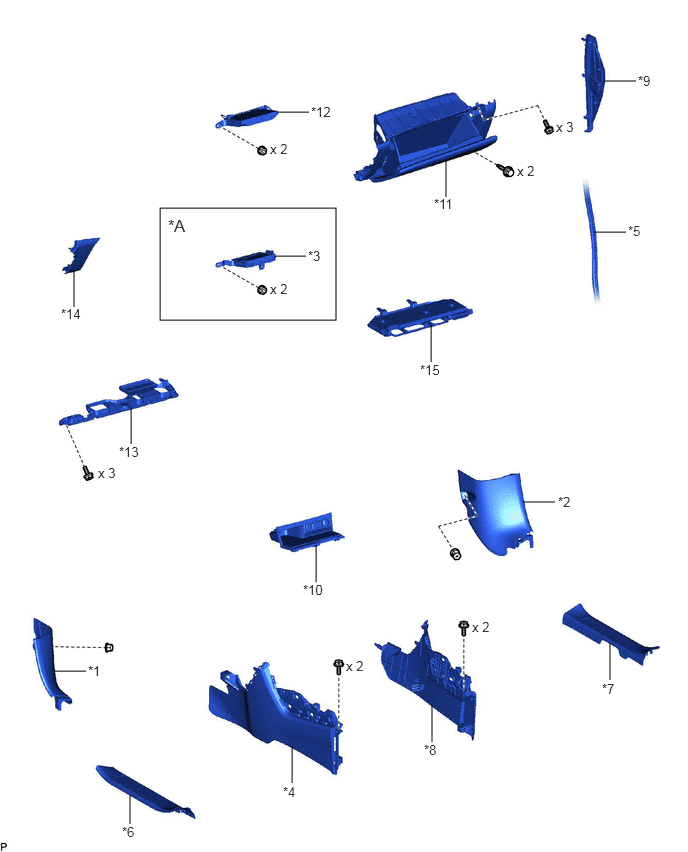

Fig 1: Navigation ECU Replacement Components [12/2019 - 10/2022] (1 Of 2)
GTY921412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Manual (SOS) Switch - -
*1 COWL SIDE TRIM SUB-ASSEMBLY LH *2 COWL SIDE TRIM SUB-ASSEMBLY RH
*3 DCM (TELEMATICS TRANSCEIVER) WITH BRACKET *4 FRONT CONSOLE BOX INSERT
*5 FRONT DOOR OPENING TRIM WEATHERSTRIP RH *6 FRONT DOOR SCUFF PLATE LH
*7 FRONT DOOR SCUFF PLATE RH *8 FRONT NO. 2 CONSOLE BOX INSERT
*9 INSTRUMENT PANEL FINISH END PANEL RH *10 LOWER CENTER INSTRUMENT PANEL FINISH PANEL
*11 LOWER INSTRUMENT PANEL SUB-ASSEMBLY *12 NAVIGATION ECU WITH BRACKET
*13 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *14 NO. 1 SWITCH HOLE BASE
*15 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY - -

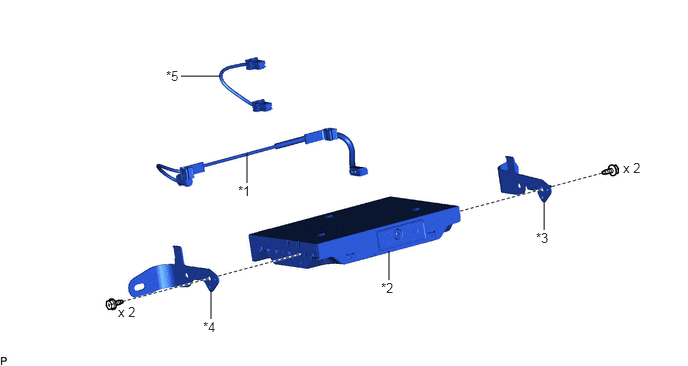

Fig 2: Navigation ECU Replacement Components [12/2019 - 10/2022] (2 Of 2)
GTY933398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ANTENNA CORD SUB-ASSEMBLY *2 NAVIGATION ECU
*3 NO. 3 RADIO RECEIVER BRACKET *4 NO. 4 RADIO RECEIVER BRACKET
*5 RADIO WIRING SUB-ASSEMBLY - -
