Components [12/2019 - ]

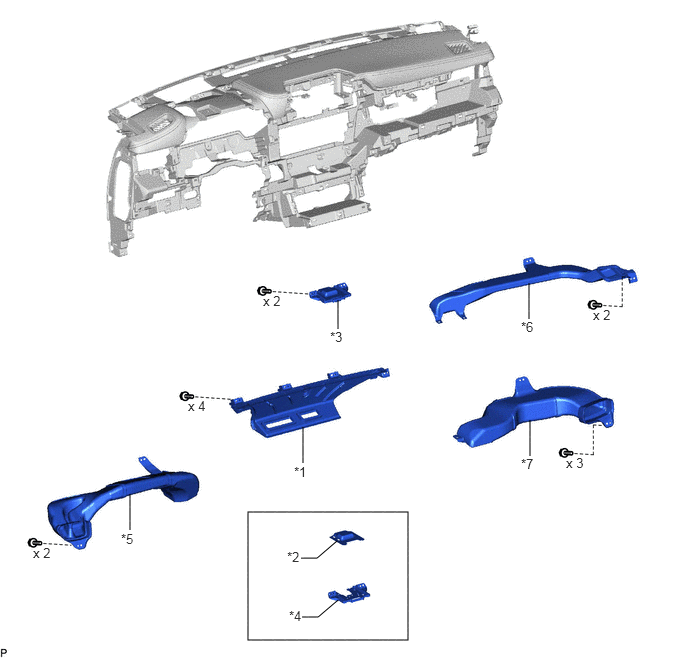

Fig 1: Navigation Antenna Replacement Components
GTY869555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DEFROSTER NOZZLE ASSEMBLY *2 NAVIGATION ANTENNA ASSEMBLY
*3 NAVIGATION ANTENNA ASSEMBLY WITH BRACKET *4 NAVIGATION ANTENNA BRACKET
*5 NO. 1 HEATER TO REGISTER DUCT *6 NO. 2 SIDE DEFROSTER NOZZLE DUCT
*7 NO. 4 HEATER TO REGISTER DUCT - -
