Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE TRANSCEIVER ANTENNA BASE SUB-ASSEMBLY

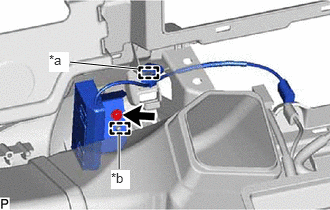

    1. Disengage the clamp.
      GTY869493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the screw.
    3. Disengage the guide to remove the transceiver antenna base sub-assembly.
