System Diagram [12/2019 - 10/2022]

GTY844529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY883453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

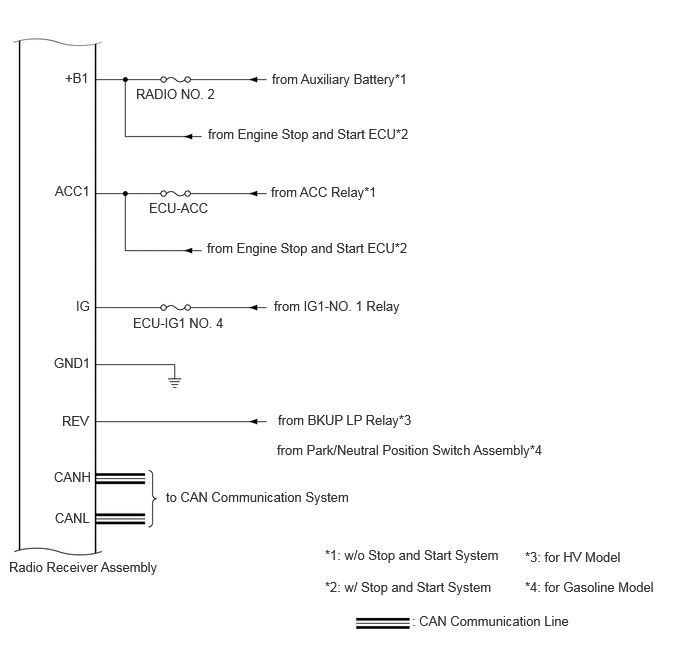

GTY878583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

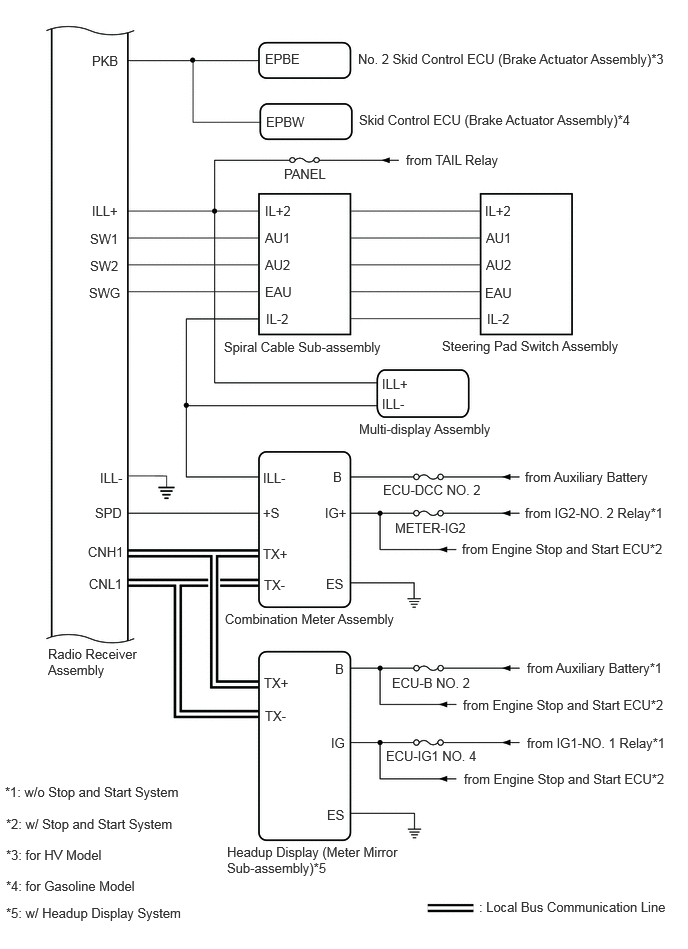

GTY842585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

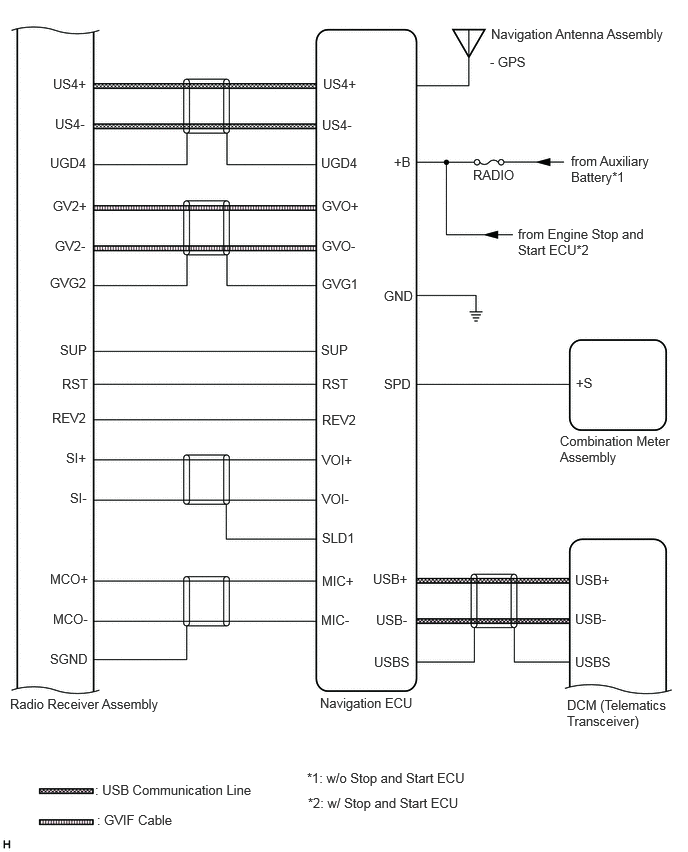

GTY889323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

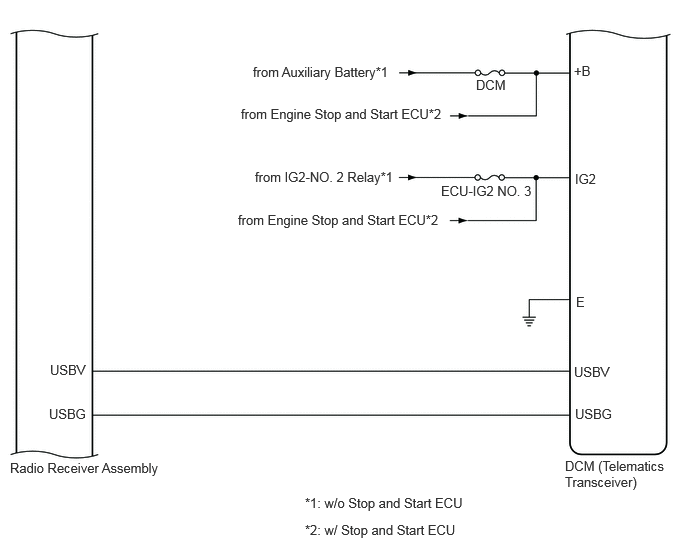

GTY938839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY900535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Rear Seat Entertainment System

GTY984447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

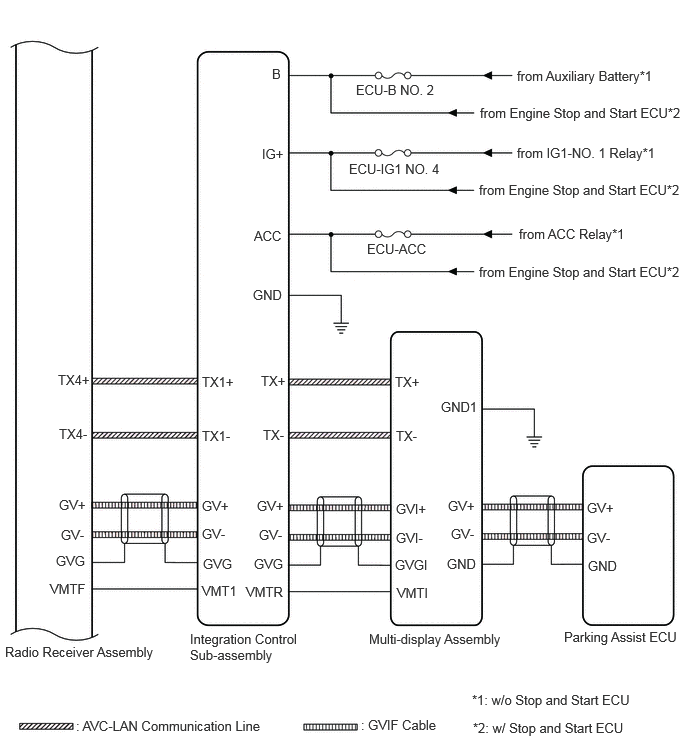

GTY848953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

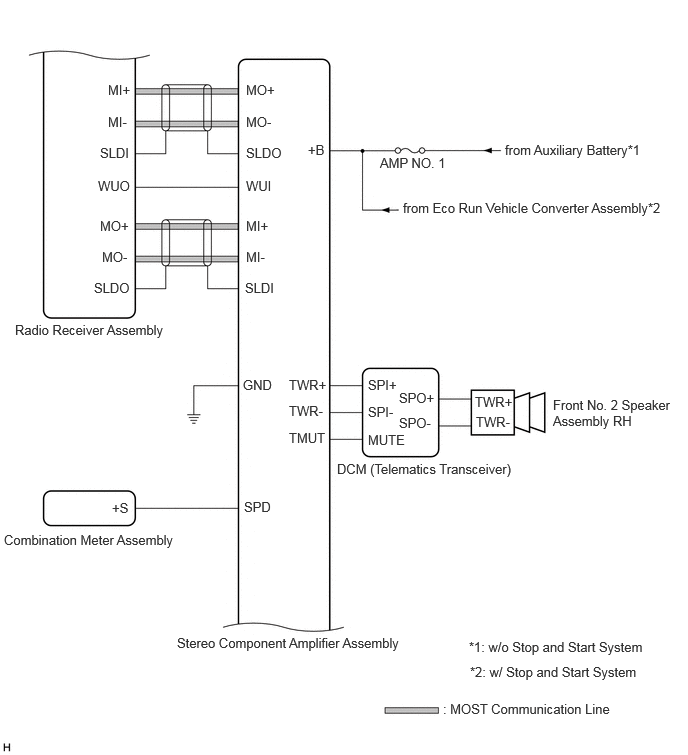

GTY846119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

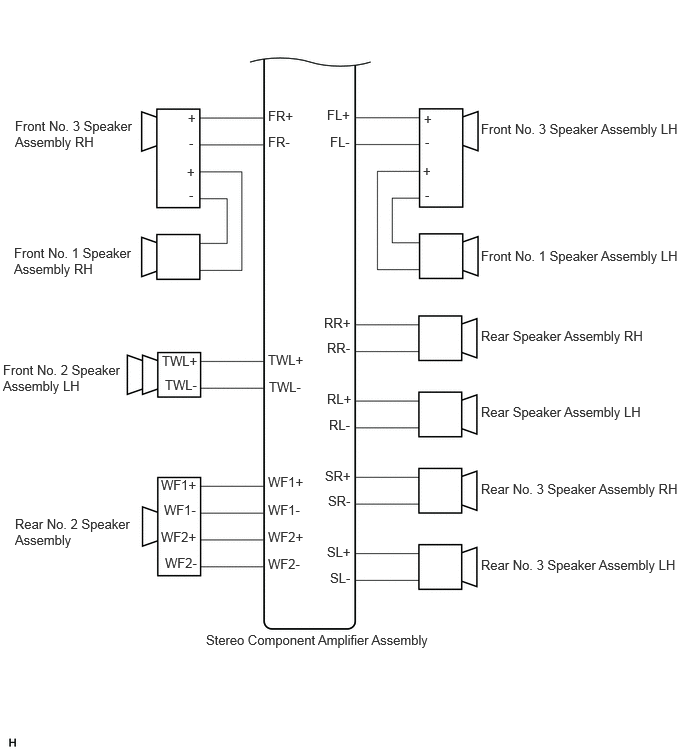

GTY914770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
