NAVIGATION SYSTEM (for 12.3 Inch Display)
>>
DTC B15C3: Speaker Output Short [12/2019 - 10/2022]
>>
Wiring Diagram

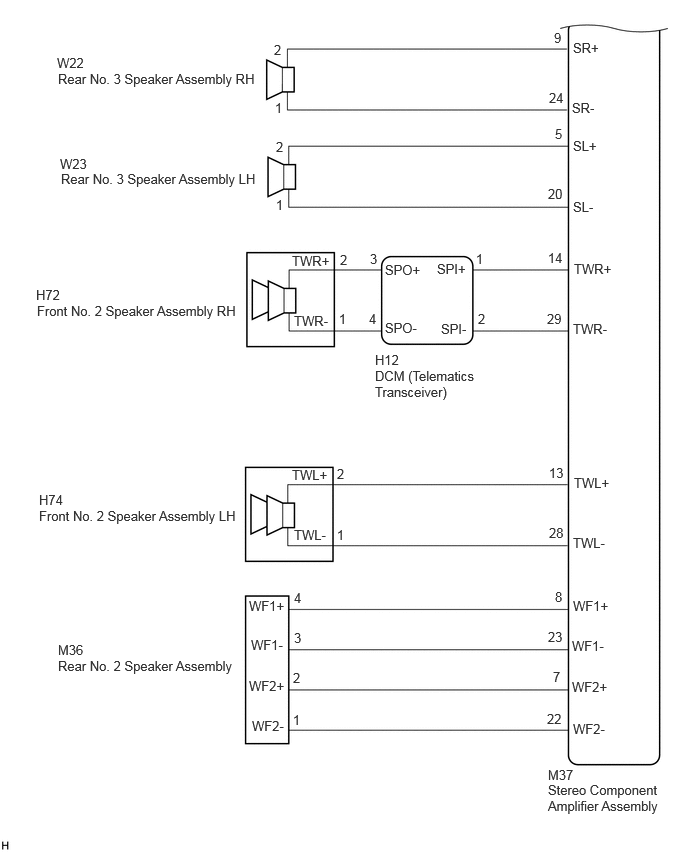

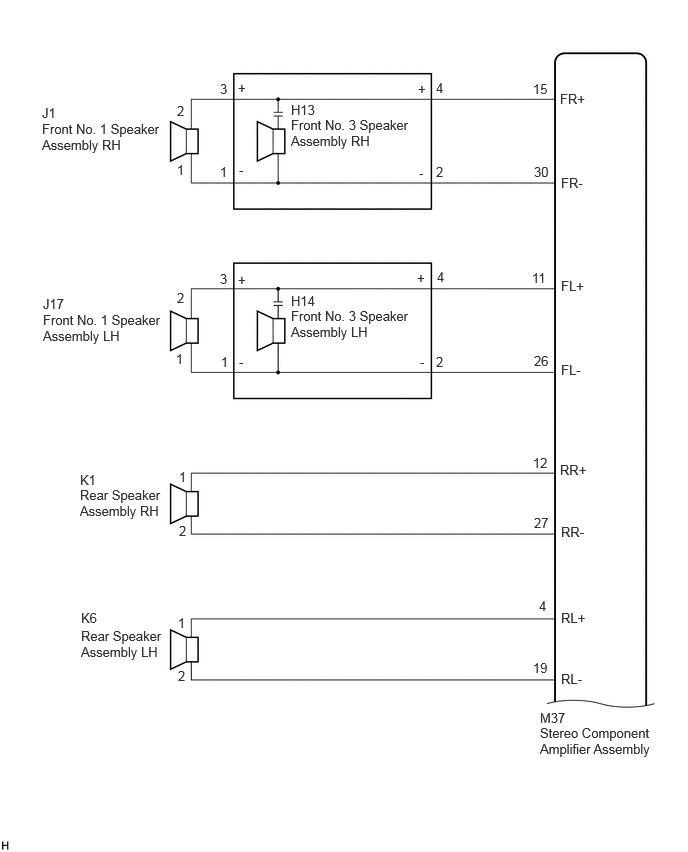

DTC B15C3: Speaker Output Short [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
