Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System (W/ AFS) - Diagnostic Codes (2 Of 2), Symptom Tests & Circuit Tests >> LIGHTING SYSTEM (w/ AFS) >> Taillight Relay Circuit [12/2019 - 11/2023] >> Wiring Diagram

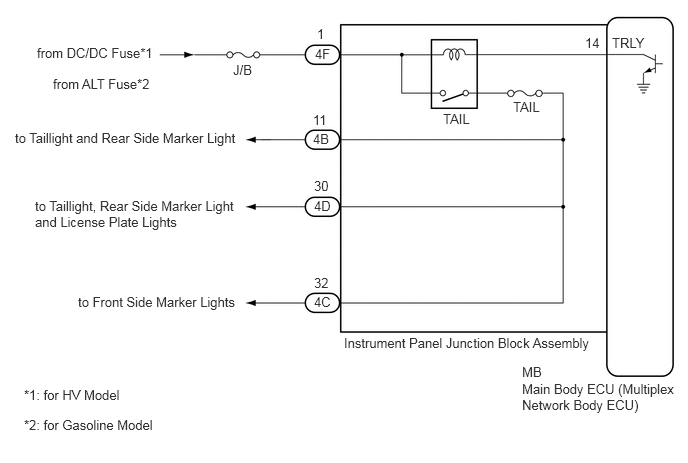

Taillight Relay Circuit [12/2019 - 11/2023]: Wiring Diagram

GTY840952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
