Section 62 (Hybrid Control System (AWD) - Diagnostic Codes (6 Of 6) & Circuit Tests (1 Of 2))
>>
HYBRID CONTROL SYSTEM (for AWD)
>>

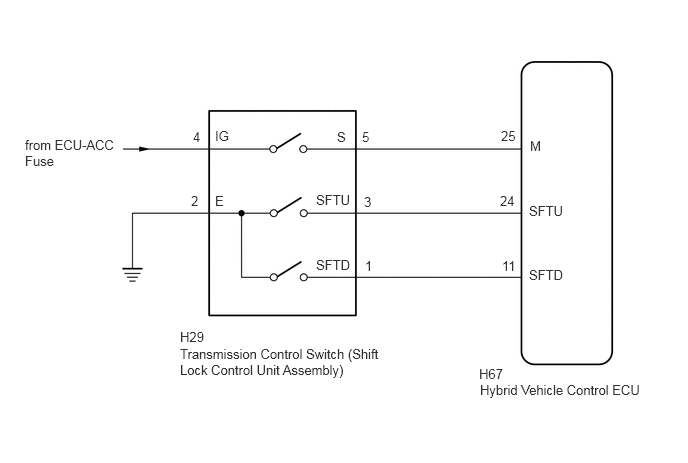

Transmission Control Switch Circuit [12/2019 - 11/2023]
>>
Wiring Diagram
Transmission Control Switch Circuit [12/2019 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
