System Diagram [12/2019 - ]
HINT:
See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.

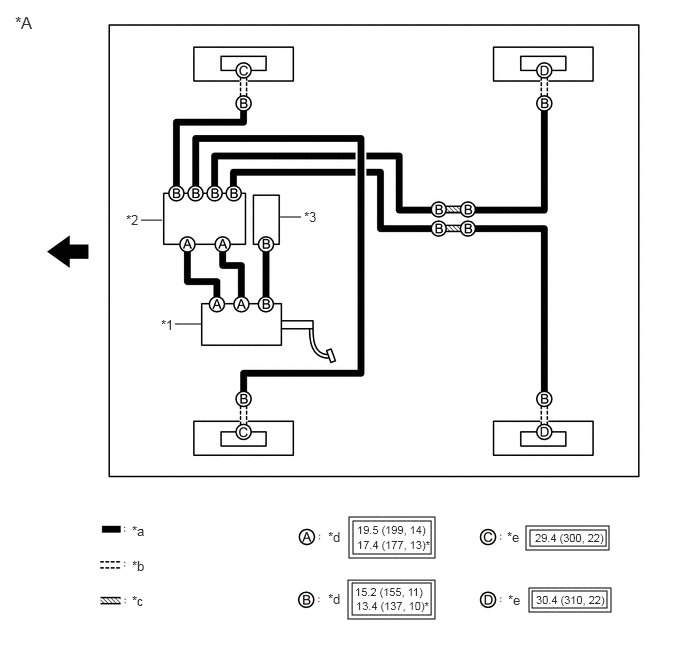

| *A | for HV Model | - | - |
| *1 | Brake Booster with Master Cylinder Assembly | *2 | Brake Actuator Assembly |
| *3 | Brake Booster with Accumulator Pump Assembly | - | - |
| *a | Brake Line | *b | Flexible Hose |
| *c | Brake Tube Way | *d | Union Nut |
| *e | Union Bolt | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
 |
Front | - | - |

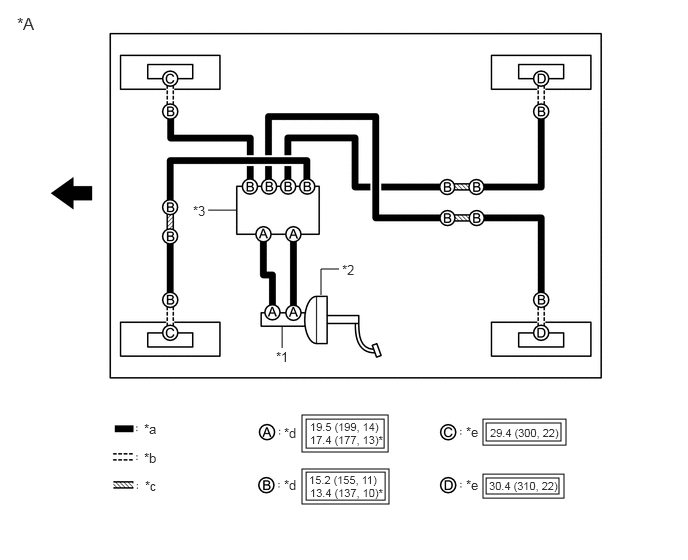

| *A | for Gasoline Model | - | - |
| *1 | Brake Master Cylinder Sub-assembly | *2 | Brake Booster Assembly |
| *3 | Brake Actuator Assembly | - | - |
| *a | Brake Line | *b | Flexible Hose |
| *c | Brake Tube Way | *d | Union Nut |
| *e | Union Bolt | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
|
Front | - | - |
