Components [12/2019 - 10/2022]
Fig 1: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | *2 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH |
| *3 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH | *4 | FRONT FENDER SPLASH SHIELD SEAL FRONT RH |
| *5 | FRONT FENDER SPLASH SHIELD SEAL FRONT LH | *6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *4 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | NO. 1 SWITCH HOLE BASE |
| *7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 3: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE PEDAL RETURN SPRING | *2 | STOP LIGHT SWITCH ASSEMBLY |
Fig 5: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY | *2 | BRAKE LINE |
| *3 | BRAKE BOOSTER GASKET | *4 | PUSH ROD PIN |
| *5 | ENGINE ROOM MAIN WIRE | *6 | RESERVOIR HOSE |
| *7 | LOCK NUT | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| * | For use with a union nut wrench | • | Non-reusable part |
|
Lithium soap base glycol grease | - | - |

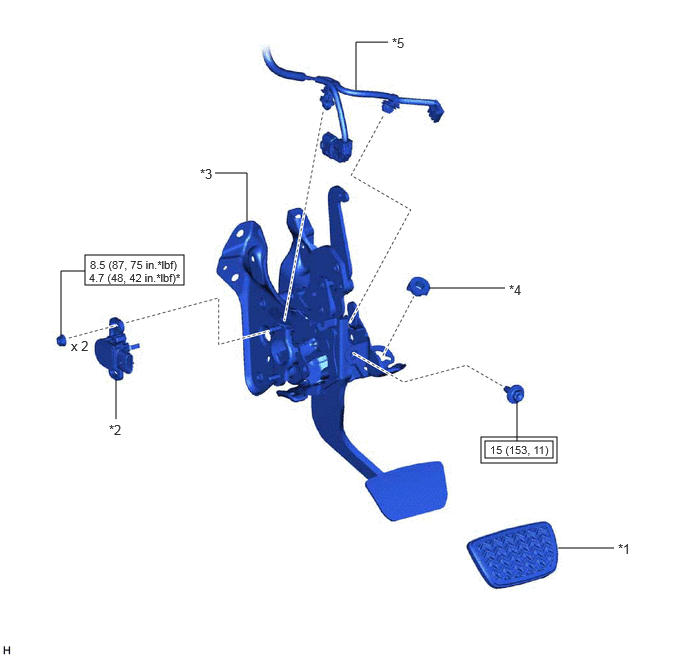

Fig 6: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *3 | BRAKE PEDAL SUPPORT ASSEMBLY | *4 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *5 | WIRE HARNESS | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| * | For use with SST | - | - |
