Removal [11/2023 - ]: Procedure

  1. REMOVE BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

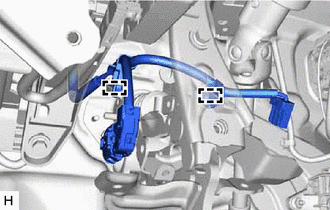

    1. Disengage the 2 clamps to separate the wire harness from the brake pedal support assembly.
      GTY917926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

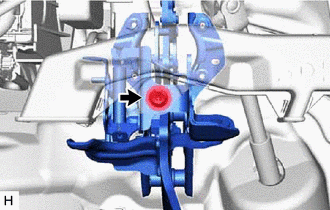

    2. Remove the bolt and separate the brake pedal support assembly while avoiding the stud bolts of the brake master cylinder support base.
      GTY917925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to deform the bracket of the instrument panel reinforcement assembly.

  4. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

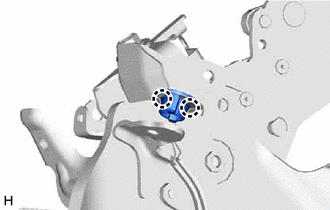

    1. Disengage the 2 claws and remove the stop light switch mounting adjuster.
      GTY917923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad from the brake pedal support assembly.
