Components [12/2019 - 10/2022]
Fig 1: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *4 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | NO. 1 SWITCH HOLE BASE |
| *7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 2: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stop and Start System | - | - |
| *1 | ENGINE STOP AND START SOLENOID FILTER | *2 | WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE LINE | *2 | BRAKE BOOSTER WITH MASTER CYLINDER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |

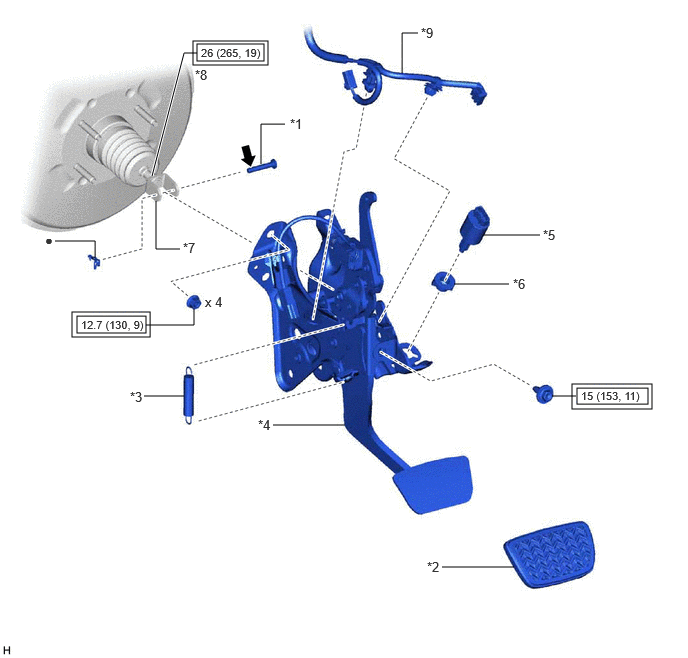

Fig 4: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications [12/2019 - 10/2022] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PUSH ROD PIN | *2 | BRAKE PEDAL PAD |
| *3 | BRAKE PEDAL RETURN SPRING | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *7 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *8 | LOCK NUT |
| *9 | WIRE HARNESS | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
Lithium soap base glycol grease | - | - |
