Components [12/2019 - ]

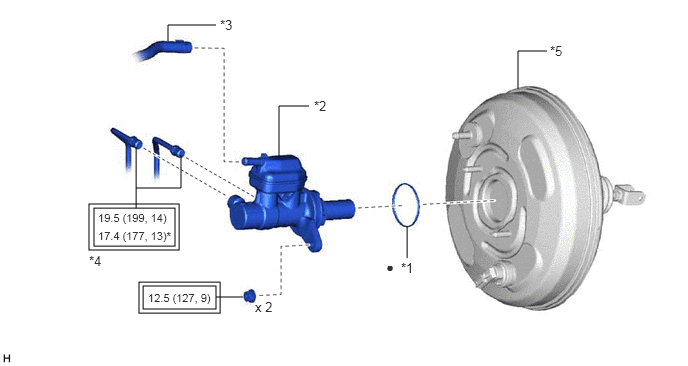

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE MASTER CYLINDER O-RING | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *3 | NO. 1 RESERVOIR HOSE | *4 | BRAKE LINE |
| *5 | BRAKE BOOSTER ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
| • | Non-reusable part | - | - |

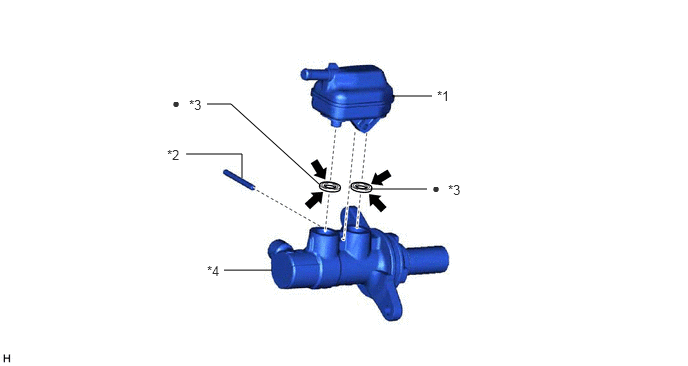

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY | *2 | BRAKE MASTER CYLINDER STRAIGHT PIN |
| *3 | MASTER CYLINDER RESERVOIR GROMMET | *4 | BRAKE MASTER CYLINDER BODY |
| • | Non-reusable part | |
Lithium soap base glycol grease |
