  1. REMOVE BRAKE MASTER CYLINDER STRAIGHT PIN
    1. Secure the brake master cylinder sub-assembly in a vise.
      NOTE:

      Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.

    2. Using a 5 mm pin punch and a hammer, tap out the brake master cylinder straight pin from the brake master cylinder sub-assembly.
      GTY916599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop the brake master cylinder reservoir sub-assembly.

  2. REMOVE BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY
    1. Remove the brake master cylinder reservoir sub-assembly from the brake master cylinder body.
  3. REMOVE MASTER CYLINDER RESERVOIR GROMMET
    1. Remove the 2 master cylinder reservoir grommets from the brake master cylinder body.

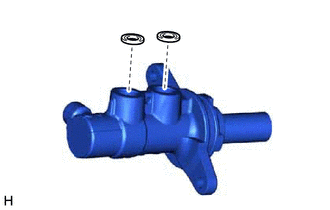

      GTY916598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the brake master cylinder body from the vise.
