Components [12/2019 - ]

Fig 1: Brake Booster (For HV Model) Replacement Components With Torque Specifications (1 Of 6)
GTY868020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COWL VENTILATOR PANEL SUB-ASSEMBLY *2 FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH
*3 FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH *4 FRONT FENDER SPLASH SHIELD SEAL FRONT RH
*5 FRONT FENDER SPLASH SHIELD SEAL FRONT LH *6 FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH
*7 FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

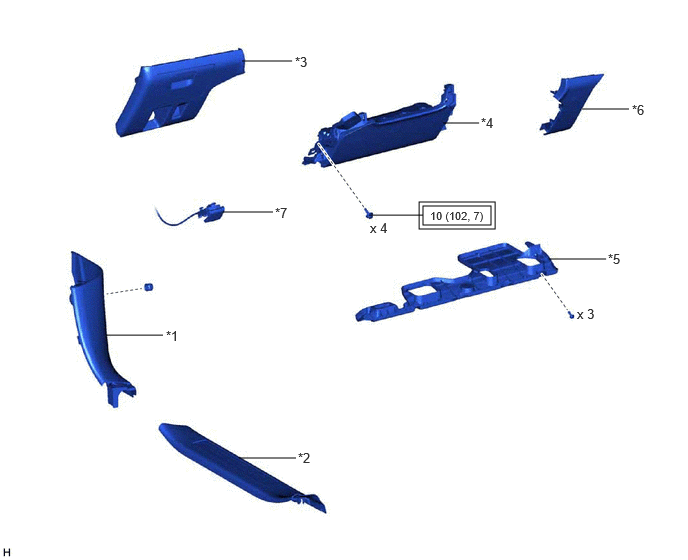

Fig 2: Brake Booster (For HV Model) Replacement Components With Torque Specifications (2 Of 6)
GTY840861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COWL SIDE TRIM SUB-ASSEMBLY LH *2 FRONT DOOR SCUFF PLATE LH
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
*5 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *6 NO. 1 SWITCH HOLE BASE
*7 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -

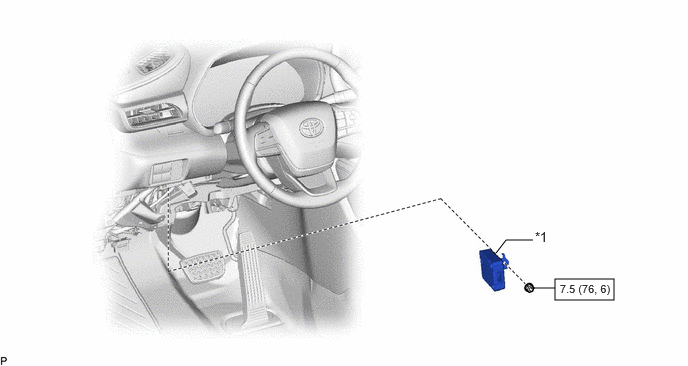

Fig 3: Brake Booster (For HV Model) Replacement Components With Torque Specifications (3 Of 6)
GTY860269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VEHICLE APPROACHING SPEAKER CONTROLLER - -
N.m (kgf/cm, ft.lbf): Specified torque - -

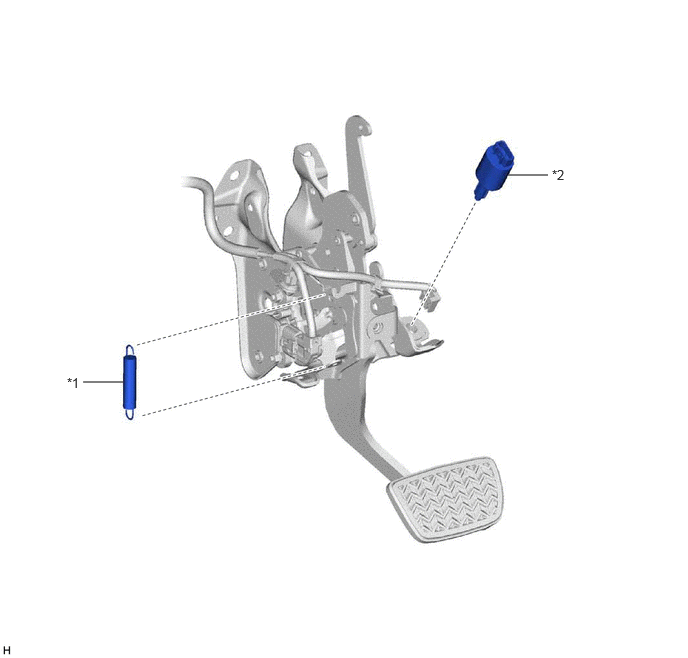

Fig 4: Brake Booster (For HV Model) Replacement Components (4 Of 6)
GTY906985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE PEDAL RETURN SPRING *2 STOP LIGHT SWITCH ASSEMBLY

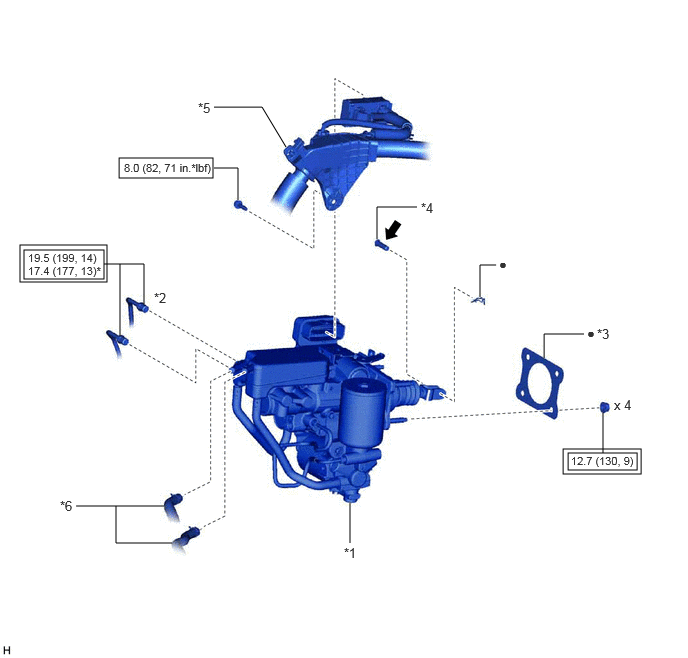

Fig 5: Brake Booster (For HV Model) Replacement Components With Torque Specifications (5 Of 6)
GTY869623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY *2 BRAKE LINE
*3 BRAKE BOOSTER GASKET *4 PUSH ROD PIN
*5 ENGINE ROOM MAIN WIRE *6 RESERVOIR HOSE
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with a union nut wrench • Non-reusable part
Lithium soap base glycol grease - -

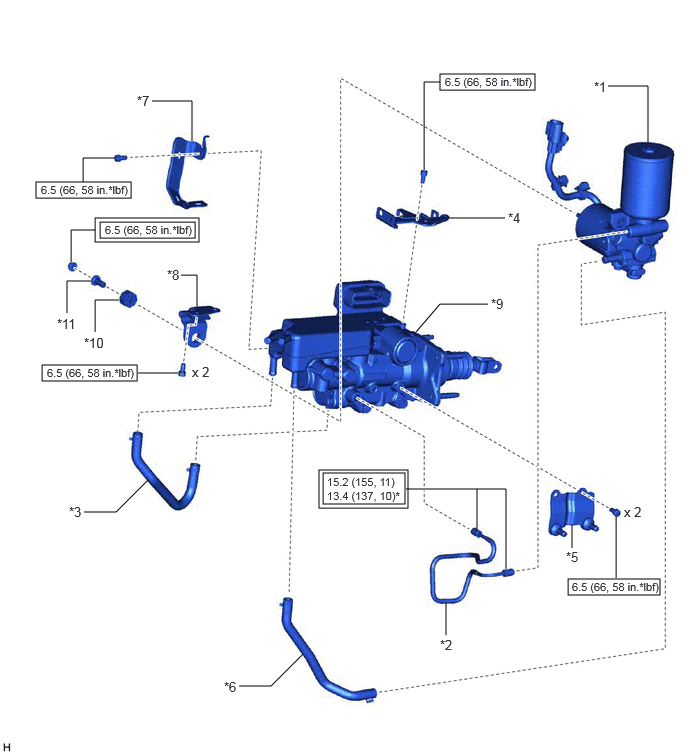

Fig 6: Brake Booster (For HV Model) Replacement Components With Torque Specifications (6 Of 6)
GTY864715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY *2 NO. 1 BRAKE ACTUATOR TUBE
*3 NO. 1 RESERVOIR HOSE *4 NO. 1 WIRE CLAMP BRACKET
*5 NO. 2 BRAKE POWER SUPPLY BRACKET *6 NO. 2 RESERVOIR HOSE
*7 NO. 2 WIRE CLAMP BRACKET *8 NO. 3 BRAKE POWER SUPPLY BRACKET
*9 BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY *10 BRAKE BOOSTER PUMP BUSHING
*11 BRAKE ACTUATOR CASE COLLAR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with a union nut wrench - -
