Caution / Notice / Hint
NOTE:
- After replacing the brake booster with master cylinder assembly, make sure to perform update ECU security key.
- After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
- Do not carry the brake master cylinder with pump assembly by the parts shown in the illustration.

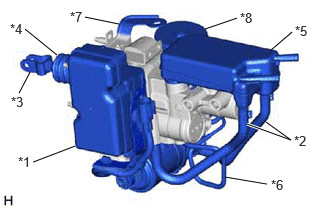

*1 No. 1 Skid Control ECU *2 Reservoir Hose *3 Master Cylinder Push Rod Clevis *4 Boot *5 Reservoir *6 No. 1 Brake Actuator Tube *7 No. 1 Wire Clamp Bracket *8 Brake Booster with Accumulator Pump Assembly
