Components [10/2022 - ]
Fig 1: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | *2 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH |
| *3 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH | *4 | FRONT FENDER SPLASH SHIELD SEAL FRONT RH |
| *5 | FRONT FENDER SPLASH SHIELD SEAL FRONT LH | *6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *4 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | NO. 1 SWITCH HOLE BASE |
| *7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 3: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stop and Start System | - | - |
| *1 | ENGINE STOP AND START SOLENOID FILTER | *2 | WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

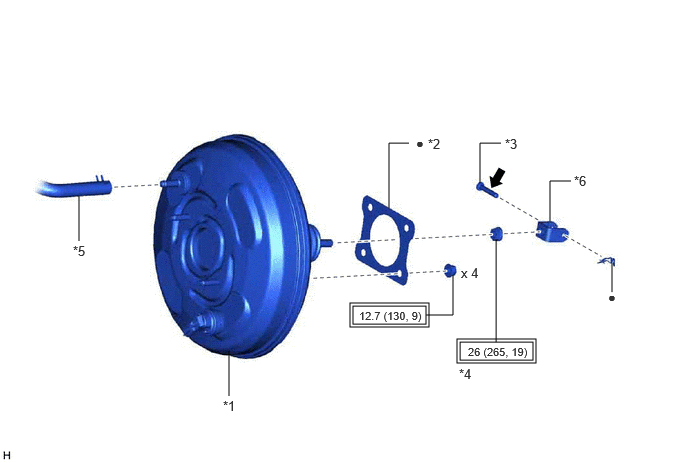

Fig 4: Brake Booster (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | PUSH ROD PIN | *4 | LOCK NUT |
| *5 | CONNECTOR TO CHECK VALVE HOSE | *6 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
Lithium soap base glycol grease | - | - |

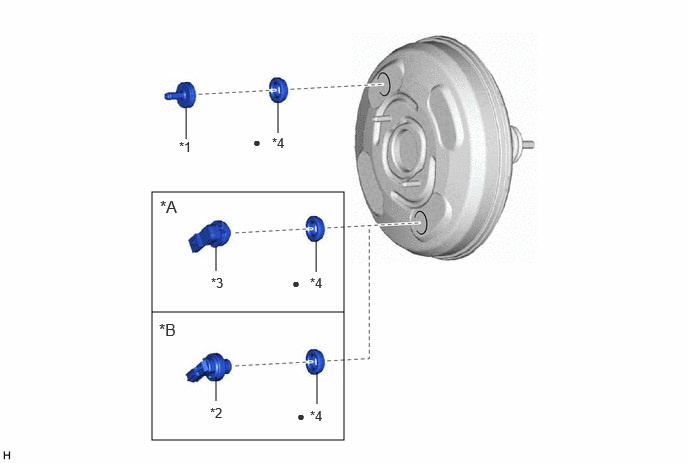

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Stop and Start System | *B | w/ Stop and Start System |
| *1 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| *3 | VACUUM SENSOR ASSEMBLY | *4 | GROMMET |
| • | Non-reusable part | - | - |
