Reassembly [12/2019 - 10/2022]: Procedure

  1. INSTALL VACUUM WARNING SWITCH ASSEMBLY (w/o Stop and Start System)
    1. Install a new grommet to the brake booster assembly.

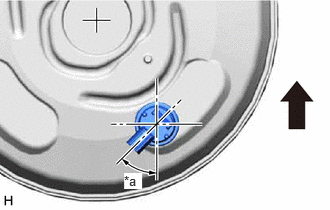

    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY934444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° +/- 20°
      Up
  2. INSTALL VACUUM SENSOR ASSEMBLY (w/ Stop and Start System)
    1. Install a new grommet to the brake booster assembly.

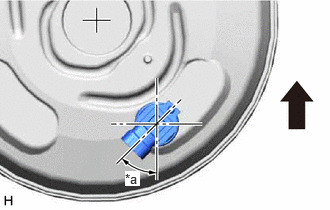

    2. Install the vacuum sensor assembly to the brake booster assembly as shown in the illustration.
      GTY871274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° +/- 20°
      Up
  3. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Install a new grommet to the brake booster assembly.
    2. Install the brake vacuum check valve assembly to the brake booster assembly.
