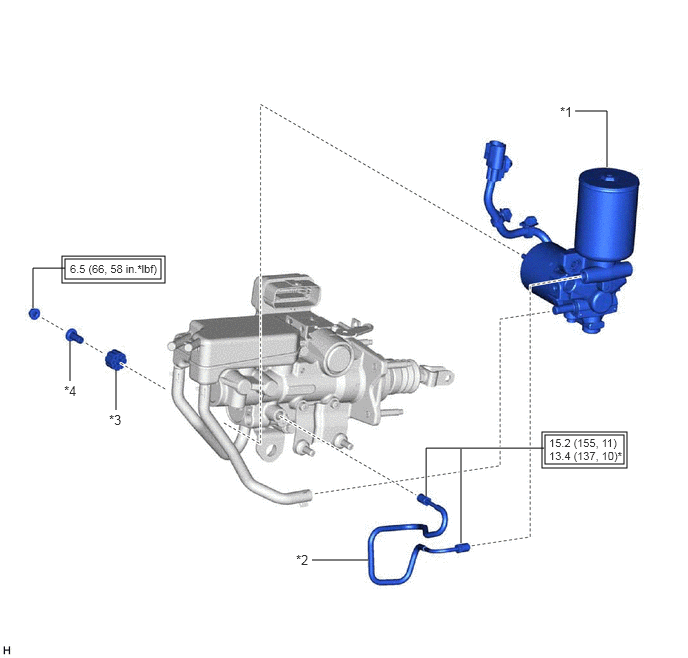

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY | *2 | NO. 1 BRAKE ACTUATOR TUBE |
| *3 | BRAKE BOOSTER PUMP BUSHING | *4 | BRAKE ACTUATOR CASE COLLAR |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
