Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE NO. 1 BRAKE ACTUATOR TUBE

    See step  30

  3. REMOVE BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY

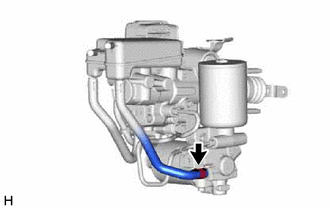

    1. Slide the clip and disconnect the No. 2 reservoir hose from the brake booster with accumulator pump assembly.
      GTY924065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

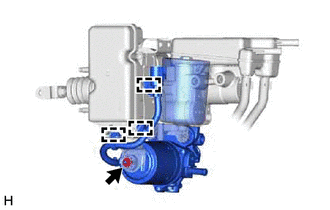

    2. Disengage the 3 clamps to separate the wire harness.
      GTY924064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut, brake booster with accumulator pump assembly, brake booster pump bushing and brake actuator case collar.
