Installation [12/2019 - ]: Procedure

1. Install the brake booster with accumulator pump assembly, brake booster pump bushing and brake actuator case collar with the nut to the brake booster with master cylinder assembly as shown in the illustration.

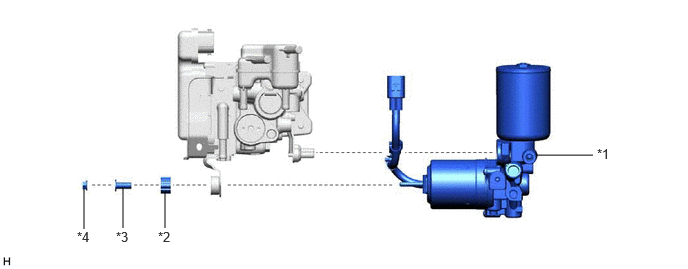

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Brake Booster with Accumulator Pump Assembly	*2	Brake Booster Pump Bushing
   *3	Brake Actuator Case Collar	*4	Nut

   Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

2. Engage the 3 clamps to the brake booster with master cylinder assembly.
3. Connect the No. 2 reservoir hose to the brake booster with accumulator pump assembly and slide the clip to secure it.

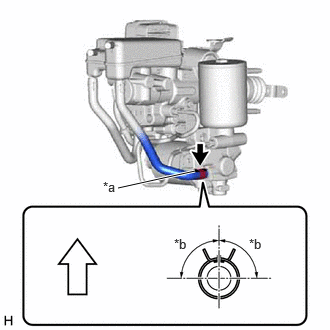

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Paint Mark
   *b	90°
   	Up

   NOTE:

   • Make sure that the paint mark is facing up.
   • Install the clip within the range shown in the illustration.

See step  6 [12/2019 - 11/2023], or see step  6 [11/2023 - ]

Refer to INSTALLATION [12/2019 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
