Components [10/2022 - ]

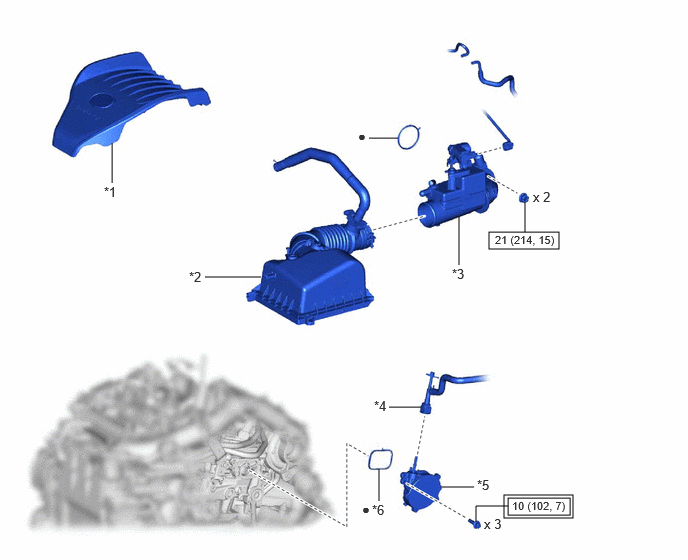

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | AIR CLEANER CAP WITH AIR CLEANER HOSE |
| *3 | COMPRESSOR INLET ELBOW SUB-ASSEMBLY | *4 | NO. 1 VACUUM HOSE CONNECTOR |
| *5 | VACUUM PUMP ASSEMBLY | *6 | NO. 1 VACUUM PUMP O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |

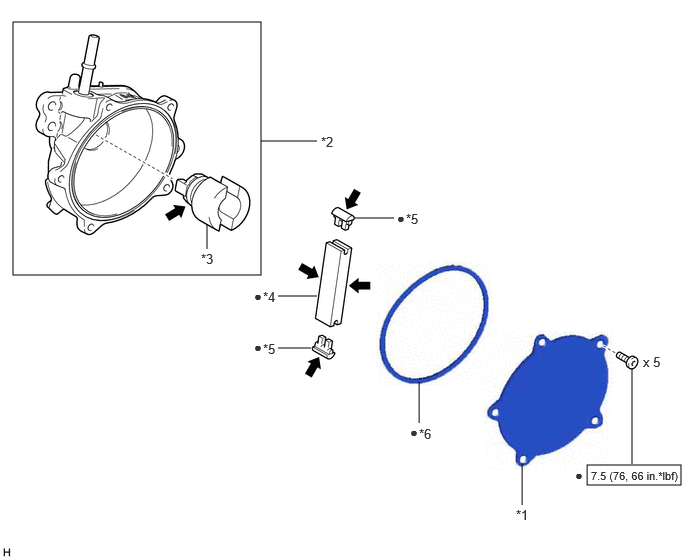

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | END COVER | *2 | VACUUM PUMP HOUSING |
| *3 | VACUUM PUMP ROTOR | *4 | VACUUM PUMP VANE |
| *5 | VACUUM PUMP VANE CAP | *6 | VACUUM PUMP COVER O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Engine oil | - | - |
