Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE BATTERY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE VACUUM WARNING SWITCH ASSEMBLY

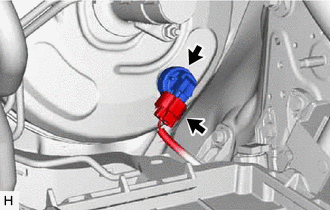

    1. Disconnect the connector from the vacuum warning switch assembly.
      GTY916559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the vacuum warning switch assembly from the brake booster assembly.
    3. Remove the grommet from the brake booster assembly.
