Removal [09/2020 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

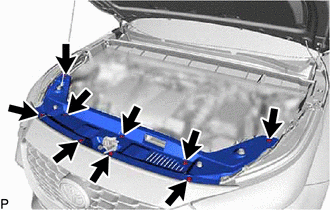

    1. Remove the 9 clips and cool air intake duct seal.
      GTY1016154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH

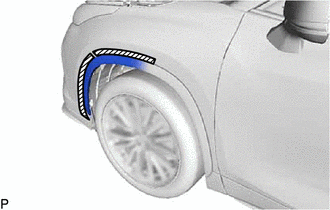

    1. Apply protective tape around the front fender wheel opening moulding sub-assembly LH.
      GTY1014987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

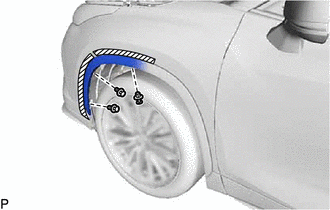

    2. Remove the 3 clips.
      GTY1016155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

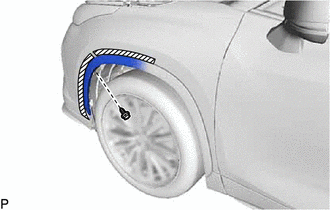

    3. Remove the screw.
      GTY1016161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

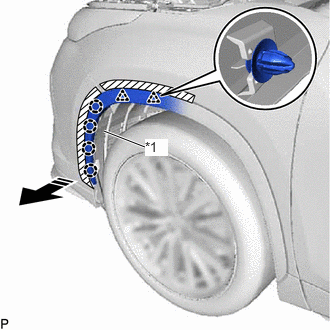

    4. Pull back the edge of the front fender liner LH and disengage the 4 claws by pushing the area indicated by the arrow in the illustration with a finger.
      GTY1015841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Fender Liner LH
      Remove in this Direction
      NOTE:
      • Do not apply excessive force when pulling back the front fender liner LH.
      • To avoid damaging the claws, do not forcibly pull the front fender wheel opening moulding sub-assembly LH.
    5. Disengage the 2 clips and disconnect the front fender wheel opening moulding sub-assembly LH.
    6. Remove the 2 clips from the front fender wheel opening moulding sub-assembly LH.
  3. DISCONNECT FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly.
      GTY1016336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

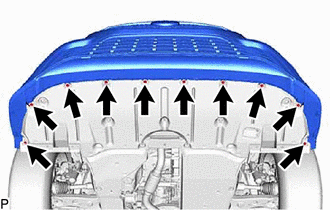

    2. Remove the 10 screws.
      GTY1015904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

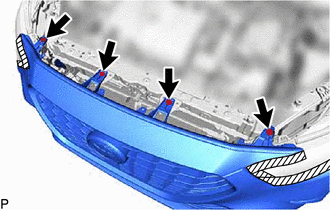

    3. Remove the 4 bolts.
      GTY1015931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

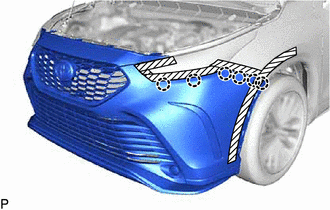

    4. Disengage the 6 claws.
      GTY1015929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

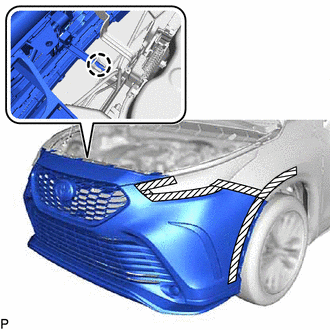

    5. Disengage the claw to remove the front bumper assembly.
      GTY1015913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

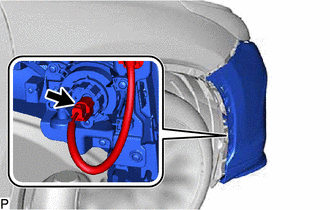

    6. Disconnect the connector.
      GTY1015912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the LH side and RH side.
