Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT BUMPER LOWER ABSORBER | *2 | NO. 2 FRONT BUMPER REINFORCEMENT |
| *3 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH | *4 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH |
| *5 | FRONT BUMPER EXTENSION SUB-ASSEMBLY RH | *6 | FRONT BUMPER EXTENSION SUB-ASSEMBLY LH |
| *7 | NO. 2 ENGINE MOUNTING STAY RH | *8 | ENGINE ASSEMBLY WITH TRANSAXLE |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | STARTER ASSEMBLY | *2 | TERMINAL CAP |
| *3 | ENGINE ASSEMBLY WITH TRANSAXLE | *4 | ENGINE WIRE |
| *5 | VACUUM HOSE | *6 | TRANSMISSION BREATHER CLAMP |
| *7 | WATER BY-PASS HOSE ASSEMBLY | *8 | HOSE CLAMP |
| *9 | FRONT FRAME ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AUTOMATIC TRANSAXLE ASSEMBLY | *2 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 | TORQUE CONVERTER ASSEMBLY | *4 | MANIFOLD STAY |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | |
Toyota Genuine Clutch Spline Grease or equivalent |
|
MP grease | * | Precoated part |

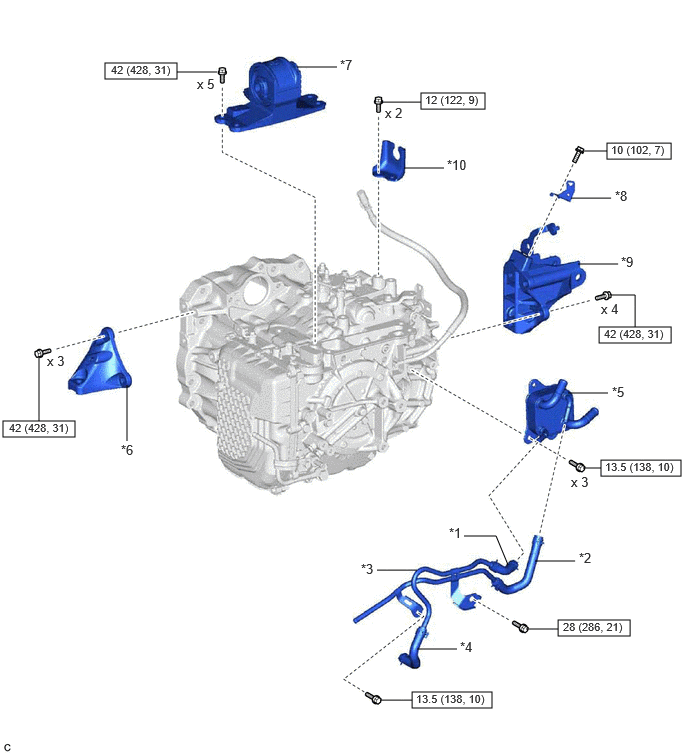

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET NO. 2 OIL COOLER HOSE | *2 | OUTLET NO. 3 OIL COOLER HOSE |
| *3 | NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE | *4 | INLET NO. 1 OIL COOLER HOSE |
| *5 | TRANSMISSION OIL COOLER | *6 | FRONT ENGINE MOUNTING BRACKET |
| *7 | ENGINE MOUNTING INSULATOR LH | *8 | WIRE HARNESS CLAMP BRACKET |
| *9 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | *10 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION CASE PLUG ASSEMBLY | *2 | WIRE HARNESS CLAMP BRACKET |
| *3 | BREATHER PLUG HOSE | *4 | BREATHER PLUG SUB-ASSEMBLY |
| *5 | UPPER TRANSAXLE CASE COVER | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Toyota Genuine ATF WS | - | - |
