Components [12/2019 - 10/2022]

WARNING: This page is about a different variant/trim than selected.

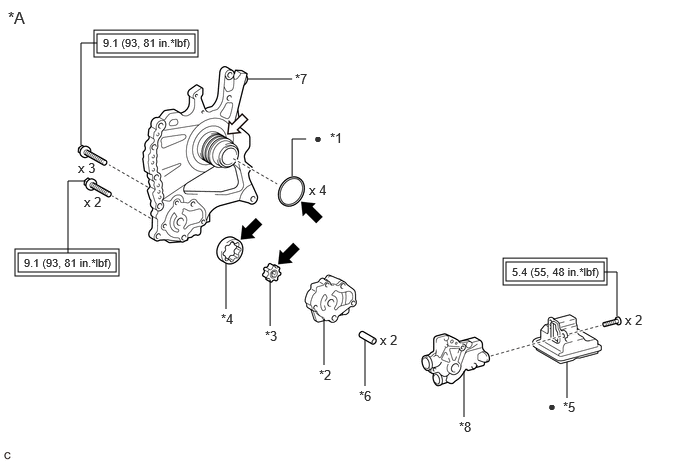

Fig 1: Oil Pump Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
GTY934684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Stop And Start System - -
*1 CLUTCH DRUM OIL SEAL RING *2 FRONT OIL PUMP BODY
*3 FRONT OIL PUMP DRIVE GEAR *4 FRONT OIL PUMP DRIVEN GEAR
*5 OIL STRAINER ASSEMBLY *6 RING PIN
*7 STATOR SHAFT ASSEMBLY *8 FRONT OIL PUMP COVER SUB-ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
Toyota Genuine ATF WS MP grease

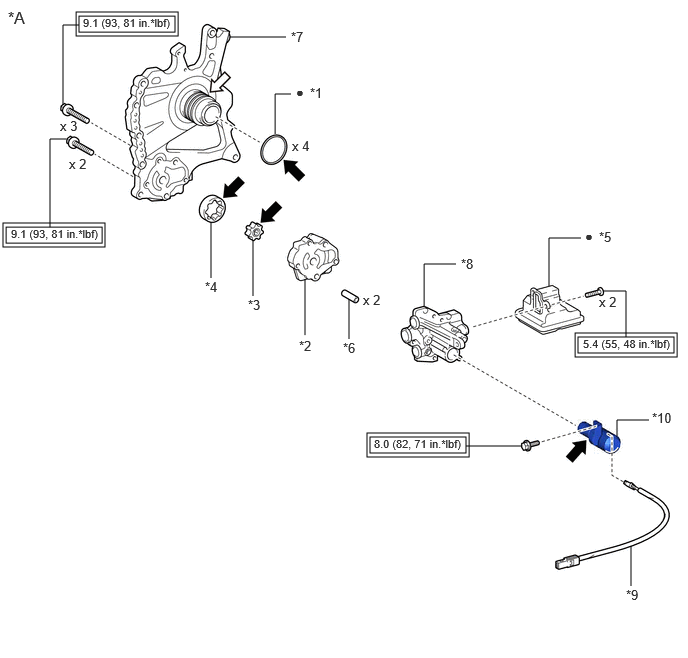

Fig 2: Oil Pump Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
GTY860349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stop And Start System - -
*1 CLUTCH DRUM OIL SEAL RING *2 FRONT OIL PUMP BODY
*3 FRONT OIL PUMP DRIVE GEAR *4 FRONT OIL PUMP DRIVEN GEAR
*5 OIL STRAINER ASSEMBLY *6 RING PIN
*7 STATOR SHAFT ASSEMBLY *8 FRONT OIL PUMP COVER SUB-ASSEMBLY
*9 TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY) *10 OIL PUMP WITH SOLENOID ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
Toyota Genuine ATF WS MP grease
