Disassembly [12/2019 - 10/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE CLUTCH DRUM OIL SEAL RING
- Remove the 4 clutch drum oil seal rings from the stator shaft assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
w/ Stop And Start System |
| *B |
w/o Stop And Start System |
- REMOVE OIL STRAINER ASSEMBLY
- Using a T30 "TORX" socket wrench, remove the 2 bolts and oil strainer assembly from the front oil pump cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
w/ Stop And Start System |
| *B |
w/o Stop And Start System |
- REMOVE TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY) (w/ Stop And Start System)
- Disconnect the connector to remove the transmission wire (oil pump with solenoid assembly).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE OIL PUMP WITH SOLENOID ASSEMBLY (w/ Stop And Start System)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Remove the bolt and oil pump with solenoid assembly from the front oil pump cover sub-assembly.

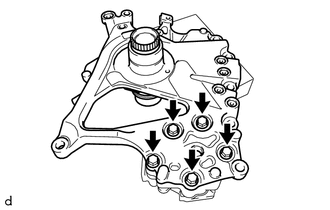

- REMOVE STATOR SHAFT ASSEMBLY
- Remove the 5 bolts and stator shaft assembly from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT OIL PUMP DRIVE GEAR
- Remove the front oil pump drive gear from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT OIL PUMP DRIVEN GEAR
- Remove the front oil pump driven gear from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT OIL PUMP BODY
- Remove the front oil pump body from the front oil pump cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE RING PIN
- Remove the 2 ring pins from the front oil pump cover sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
