Reassembly [12/2019 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL RING PIN
    1. Install the 2 ring pins to the front oil pump cover sub-assembly.
      GTY733622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT OIL PUMP BODY
    1. Install the front oil pump body to the front oil pump cover sub-assembly.
      GTY698820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT OIL PUMP DRIVEN GEAR
    1. Coat the front oil pump driven gear with Toyota Genuine ATF WS and install it to the front oil pump body.
      GTY698818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT OIL PUMP DRIVE GEAR
    1. Coat the front oil pump drive gear with Toyota Genuine ATF WS and install it to the front oil pump body.
      GTY698819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL STATOR SHAFT ASSEMBLY
    1. Install the stator shaft assembly to the front oil pump body with the 5 bolts.
      GTY717015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.1 N.m (93 kgf/cm, 81 in.lbf)

      Bolt Length

      Bolt (A) Bolt (B)
      50 mm (1.97 in.) 45 mm (1.77 in.)
  6. INSTALL OIL PUMP WITH SOLENOID ASSEMBLY (w/ Stop And Start System)
    1. Coat the O-ring of the oil pump with solenoid assembly with Toyota Genuine ATF WS.
    2. Install the oil pump with solenoid assembly to the front oil pump cover sub-assembly with the bolt.
      GTY761151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  7. INSTALL TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY) (w/ Stop And Start System)
    1. Connect the connector to install the transmission wire (oil pump with solenoid assembly).
      GTY924899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL OIL STRAINER ASSEMBLY

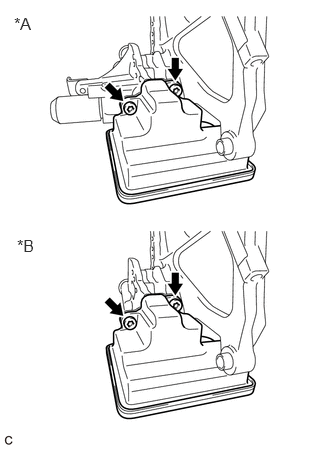

    1. Using a T30 "TORX" socket wrench, install a new oil strainer assembly to the front oil pump cover sub-assembly with the 2 bolts.
      GTY710052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  9. INSTALL CLUTCH DRUM OIL SEAL RING

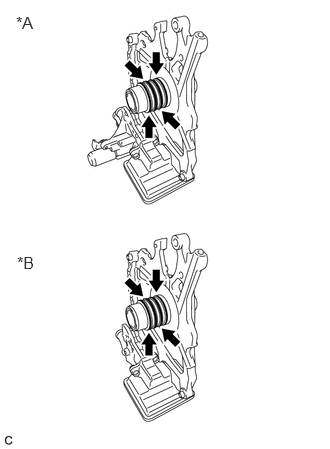

    1. Apply a small amount of MP grease to the entire circumference of the clutch drum oil seal ring installation groove portion.
      GTY737213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System

      HINT:

      By applying MP grease, the wobble within the clutch drum oil seal ring installation groove will be eliminated, preventing damage to the clutch drum oil seal ring at the time of front oil pump assembly installation.

    2. Coat 4 new clutch drum oil seal rings with Toyota Genuine ATF WS and install them to the front oil pump assembly.
      NOTE:

      While making the spread of the opening of the clutch drum oil seal ring as small as possible, install it to the front oil pump assembly.

      If the ring opening is spread, briefly hold it closed with your fingers to return it to its original condition.
