Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.

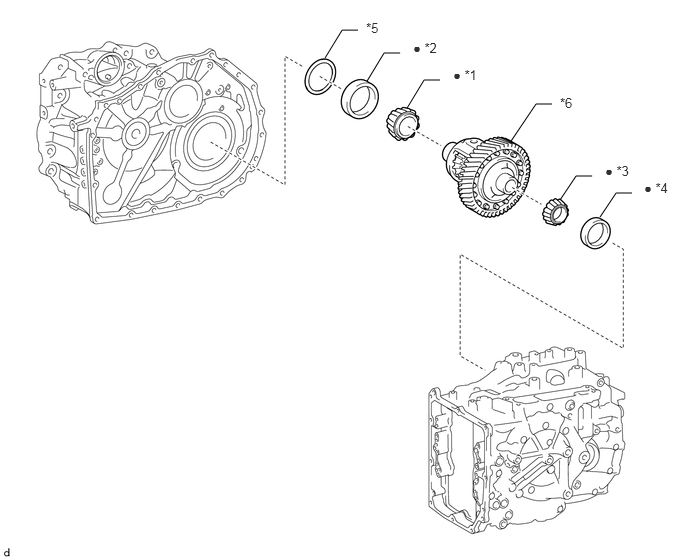

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) | *2 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) |
| *3 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) | *4 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) |
| *5 | DIFFERENTIAL DRIVE PINION SHIM | *6 | DIFFERENTIAL CASE ASSEMBLY |
| • | Non-reusable part | - | - |
