Removal [12/2019 - 09/2020]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2019 - 09/2020]

  2. REMOVE FOG LIGHT ASSEMBLY

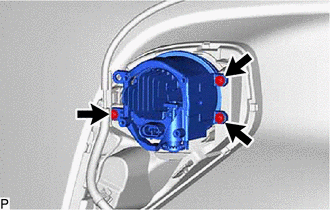

    1. Remove the 3 screws and fog light assembly.
      GTY921588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
