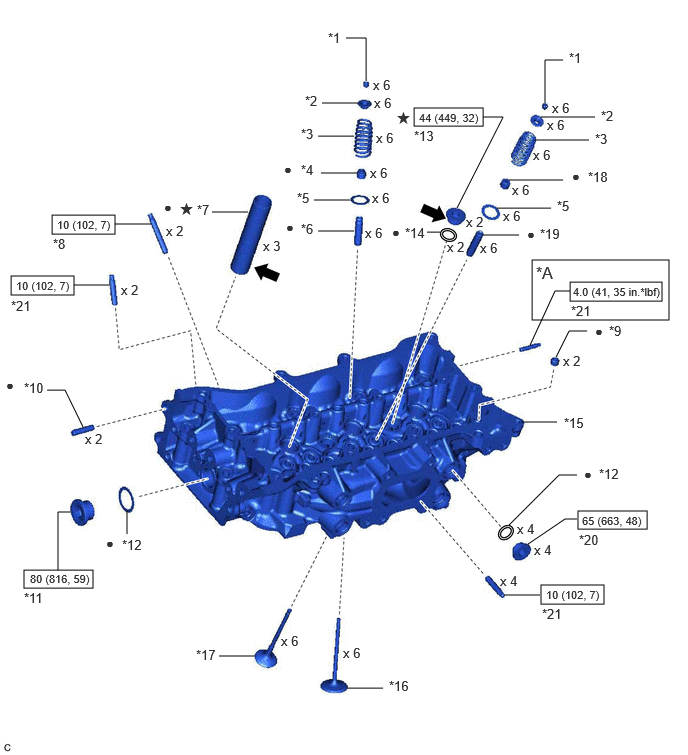

| *A |
w/ Stud Bolt |
- |
- |
| *1 |
VALVE SPRING RETAINER LOCK |
*2 |
VALVE SPRING RETAINER |
| *3 |
INNER COMPRESSION SPRING |
*4 |
INTAKE VALVE STEM OIL SEAL |
| *5 |
VALVE SPRING SEAT |
*6 |
INTAKE VALVE GUIDE BUSH |
| *7 |
SPARK PLUG TUBE |
*8 |
INTAKE MANIFOLD TO CYLINDER HEAD STUD BOLT |
| *9 |
RING PIN |
*10 |
STRAIGHT PIN |
| *11 |
NO. 2 STRAIGHT SCREW PLUG |
*12 |
CYLINDER HEAD SCREW PLUG GASKET |
| *13 |
NO. 1 STRAIGHT SCREW PLUG |
*14 |
WATER HOLE GASKET |
| *15 |
CYLINDER HEAD LH |
*16 |
INTAKE VALVE |
| *17 |
EXHAUST VALVE |
*18 |
EXHAUST VALVE STEM OIL SEAL |
| *19 |
EXHAUST VALVE GUIDE BUSH |
*20 |
NO. 3 STRAIGHT SCREW PLUG |
| *21 |
STUD BOLT |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Adhesive 1324 |
* |
Precoated part |
