Reassembly [12/2019 - 10/2022]: Procedure

  1. INSTALL SPARK PLUG TUBE

    HINT:

    When using a new cylinder head LH, the spark plug tubes must be replaced.

    1. Apply adhesive to a new spark plug tube as shown in the illustration.
      GTY625984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Application Width
      *b 9.0 to 15.0 mm (0.354 to 0.591 in.)

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      Standard Application Width

      1.0 to 3.0 mm (0.0394 to 0.118 in.)

      NOTE:

      Install the spark plug tube within 3 minutes of applying adhesive.

    2. Using a hammer and wooden block, tap in the 3 spark plug tubes to the specified protrusion height.

      Standard Protrusion Height

      73 mm (2.87 in.)

      NOTE:
      • Do not tap in the spark plug tube more than specified.
      • Do not start the engine for at least 1 hour after installation.
      • Be careful not to deform the spark plug tubes.
      • Be careful not to let adhesive drip into the cylinder head LH.

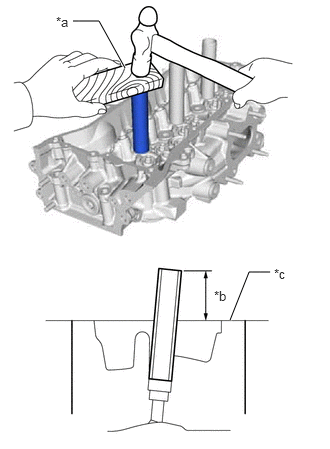

      GTY669620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Protrusion Height
      *c Cylinder Head LH Top Surface
  2. INSTALL NO. 3 STRAIGHT SCREW PLUG
    1. GTY653402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a 10 mm hexagon socket wrench, install 4 new cylinder head screw plug gaskets and the 4 No. 3 straight screw plugs to the cylinder head LH.

      Torque: 65 N.m (663 kgf/cm, 48 ft.lbf)

      NOTE:
      • Do not apply adhesive to the No. 3 straight screw plug.
      • The cylinder head screw plug gasket for the No. 3 straight screw plug is not the same as the water hole gasket for the No. 1 straight screw plug.
  3. INSTALL NO. 2 STRAIGHT SCREW PLUG
    1. Using a 14 mm hexagon wrench, install a new cylinder head screw plug gasket and the No. 2 straight screw plug to the cylinder head LH.
      GTY681524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)

  4. INSTALL NO. 1 STRAIGHT SCREW PLUG
    1. Apply adhesive to the 2 No. 1 straight screw plugs.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      Install the 2 No. 1 straight screw plugs within 3 minutes of applying adhesive.

    2. Using a 10 mm hexagon socket wrench, install 2 new water hole gaskets and the 2 No. 1 straight screw plugs to the cylinder head LH.
      GTY653444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

  5. INSTALL VALVE SPRING SEAT
    1. Install the 12 valve spring seats to the cylinder head LH.
  6. INSTALL INTAKE VALVE STEM OIL SEAL
    1. Apply a light coat of engine oil to a new intake valve stem oil seal.

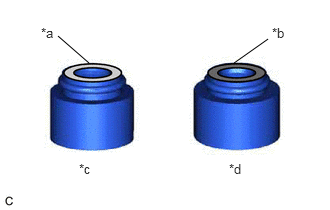

      GTY666616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Gray
      *b Black
      *c Intake Side
      *d Exhaust Side
      NOTE:

      Make sure to install each valve stem oil seal to the correct side. Installing an intake valve stem oil seal to the exhaust side or installing an exhaust valve stem oil seal to the intake side can cause installation problems later.

      HINT:

      The intake valve stem oil seals are gray and the exhaust valve stem oil seals are black.

    2. Using SST, push in the 6 intake valve stem oil seals to the intake valve guide bush.

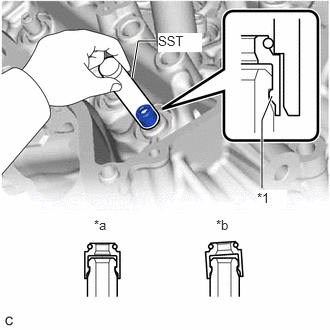

      GTY658670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Valve Stem Oil Seal
      *a Correct
      *b Incorrect
      • SST: 09201-41020
      NOTE:
      • Failure to use SST will cause the intake valve stem oil seal to be damaged or improperly seated.
      • Do not push in the intake valve stem oil seal at an angle.
  7. INSTALL EXHAUST VALVE STEM OIL SEAL

    HINT:

    Use the same procedure as for the intake side.

  8. INSTALL EXHAUST VALVE
    1. Sufficiently apply engine oil to the tip area of the exhaust valve shown in the illustration.
      GTY622520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 mm (1.18 in.) or more
    2. Install the 6 exhaust valves, 6 inner compression springs and 6 valve spring retainers to the cylinder head LH.
      GTY615037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Valve Spring Retainer
      *2 Inner Compression Spring
      *3 Cylinder Head LH
      Top Side
      NOTE:
      • Install the inner compression spring with its tapered side facing upward (towards the valve spring retainer).
      • Install the same parts in the same combination to their original locations.
    3. Using SST and wooden blocks, compress the inner compression spring and install the 6 valve spring retainer locks to the valve spring retainer.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY645833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      NOTE:

      Install the same parts in the same combination to their original locations.

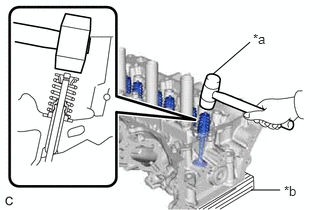

    4. Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.
      GTY631454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plastic Hammer
      *b Wooden Block
      NOTE:
      • Be careful not to damage the valve stem tip.
      • Be careful not to damage the valve spring retainer.
  9. INSTALL INTAKE VALVE
    1. Sufficiently apply engine oil to the tip area of the intake valve shown in the illustration.
      GTY654531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 mm (1.18 in.) or more
    2. Install the 6 intake valves, 6 inner compression springs and 6 valve spring retainers to the cylinder head LH.
      GTY615037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Valve Spring Retainer
      *2 Inner Compression Spring
      *3 Cylinder Head LH
      Top Side
      NOTE:
      • Install the inner compression spring with its tapered side facing upward (towards the valve spring retainer).
      • Install the same parts in the same combination to their original locations.
    3. Using SST and wooden blocks, compress the inner compression spring and install the 6 valve spring retainer locks to the valve spring retainer.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      NOTE:

      Install the same parts in the same combination to their original locations.

      GTY652238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
    4. Using a plastic hammer, lightly tap the valve stem tip to ensure a proper fit.

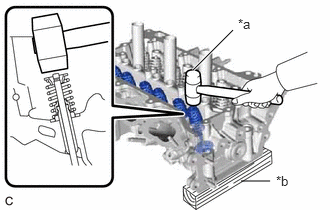

      GTY664989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plastic Hammer
      *b Wooden Block
      NOTE:
      • Be careful not to damage the valve stem tip.
      • Be careful not to damage the valve spring retainer.
