Components [12/2019 - 10/2022]

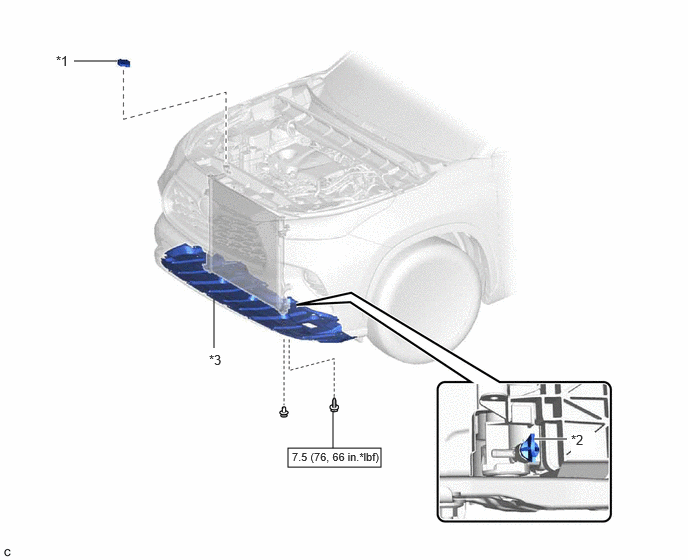

Fig 1: Coolant Replacement Components With Torque Specifications [12/2019 - 10/2022]
GTY874852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RADIATOR CAP SUB-ASSEMBLY *2 RADIATOR DRAIN COCK PLUG
*3 NO. 1 ENGINE UNDER COVER - -
