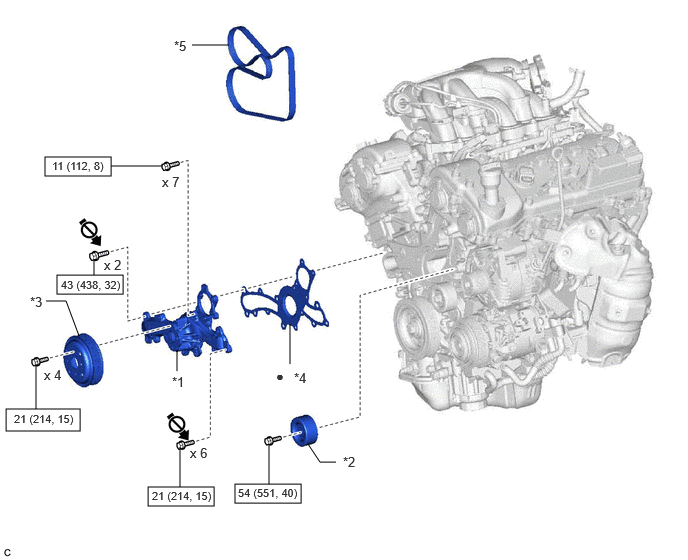

Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 | WATER PUMP PULLEY | *4 | WATER PUMP GASKET |
| *5 | V-RIBBED BELT | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Do not apply lubricants to the threaded parts | - | - |
