Components [12/2019 - 10/2022]

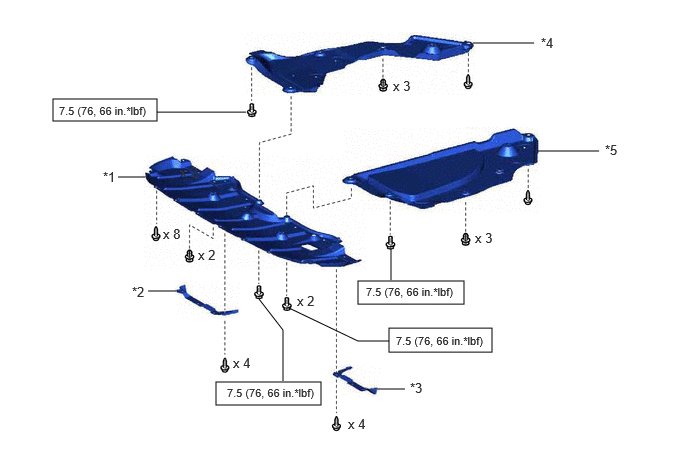

Fig 1: Thermostat Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	FRONT WHEEL OPENING EXTENSION PAD LH	*4	REAR ENGINE UNDER COVER RH
*5	REAR ENGINE UNDER COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Thermostat Replacement Components [12/2019 - 10/2022](2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	V-BANK COVER SUB-ASSEMBLY	-	-

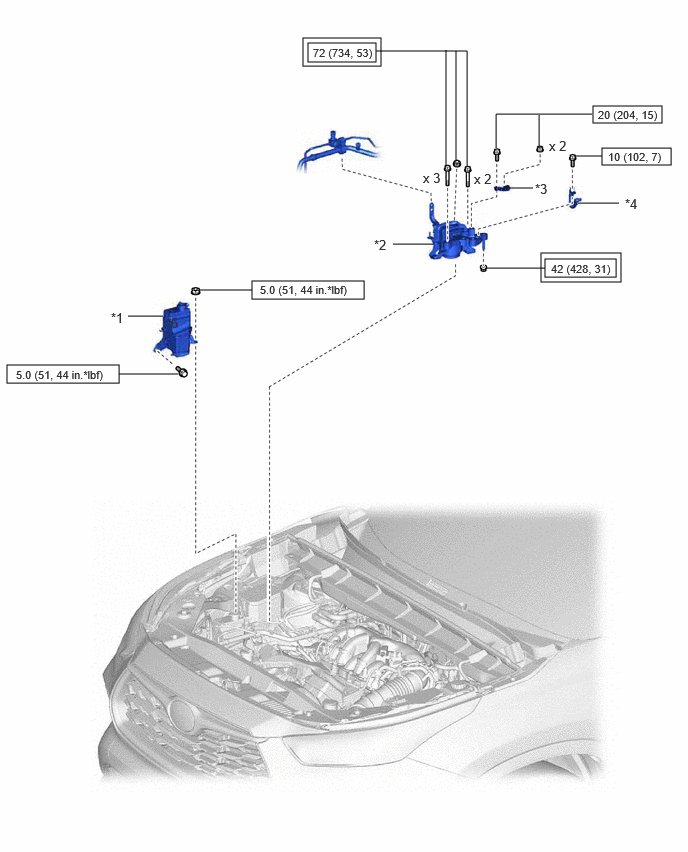

Fig 3: Thermostat Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	RADIATOR RESERVE TANK ASSEMBLY	*2	ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3	NO. 2 ENGINE MOUNTING STAY RH	*4	NO. 2 EARTH WIRE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

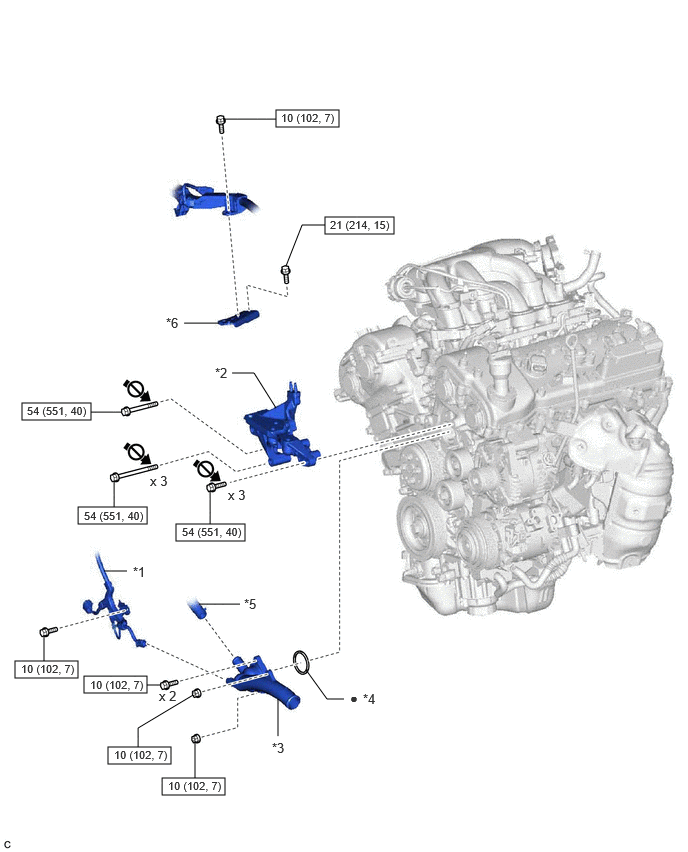

Fig 4: Thermostat Replacement Components With Torque Specifications [12/2019 - 10/2022] (4 Of 4)

Callout	Description	Callout	Description
*1	ENGINE WIRE	*2	FRONT NO. 1 ENGINE MOUNTING BRACKET LH
*3	WATER INLET WITH THERMOSTAT SUB-ASSEMBLY	*4	GASKET
*5	WATER BY-PASS HOSE	*6	REAR ENGINE MOUNTING STAY RH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants to the threaded parts	-	-
