Components [09/2020 - 10/2022]

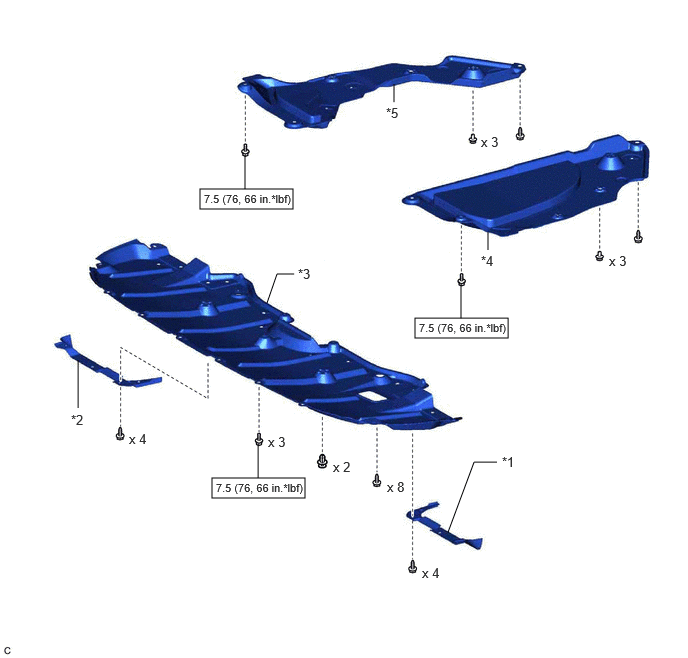

Fig 1: Radiator Replacement Components With Torque Specifications [09/2020 - 10/2022] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	REAR ENGINE UNDER COVER LH
*5	REAR ENGINE UNDER COVER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

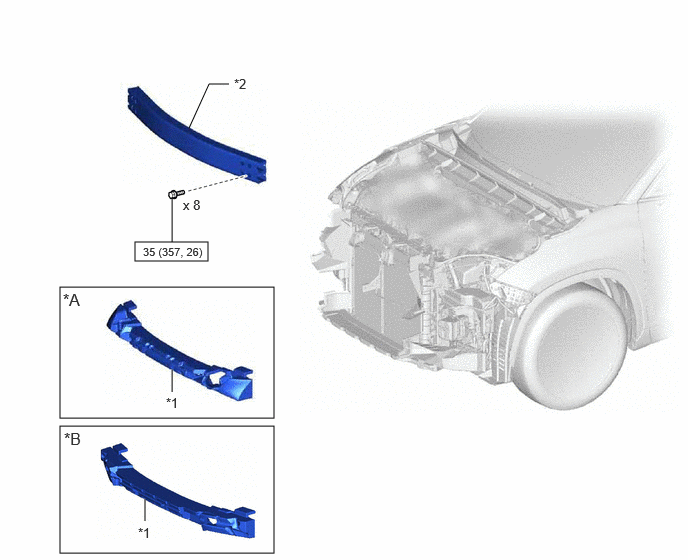

Fig 2: Radiator Replacement Components With Torque Specifications [09/2020 - 10/2022] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Sport Package	*B	for Sport Package
*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

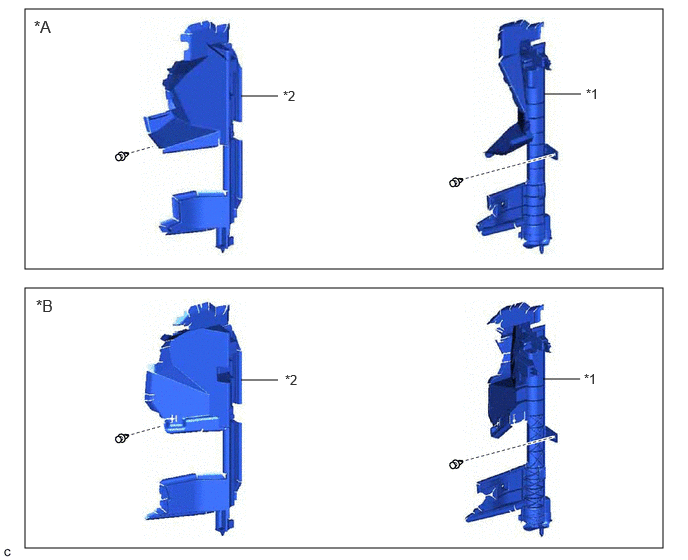

Fig 3: Radiator Replacement Components [09/2020 - 10/2022] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except Sport Package	*B	for Sport Package
*1	NO. 1 RADIATOR AIR GUIDE LH	*2	NO. 1 RADIATOR AIR GUIDE RH

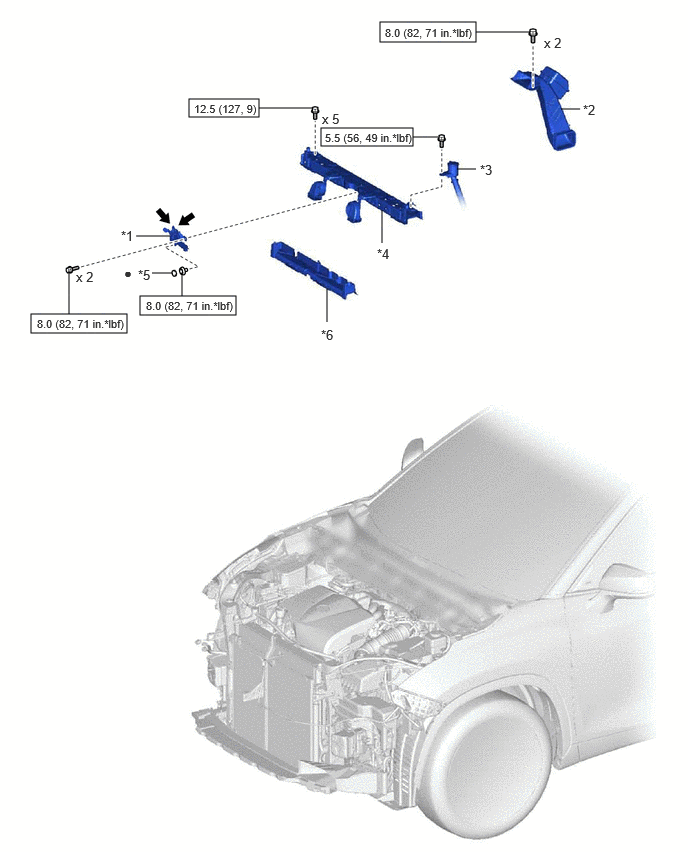

Fig 4: Radiator Replacement Components With Torque Specifications [09/2020 - 10/2022] (4 Of 5)

Callout	Description	Callout	Description
*1	HOOD LOCK ASSEMBLY	*2	INLET AIR CLEANER ASSEMBLY
*3	INLET HOSE	*4	UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5	HOOD LOCK NUT CAP	*6	NO. 2 RADIATOR AIR GUIDE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

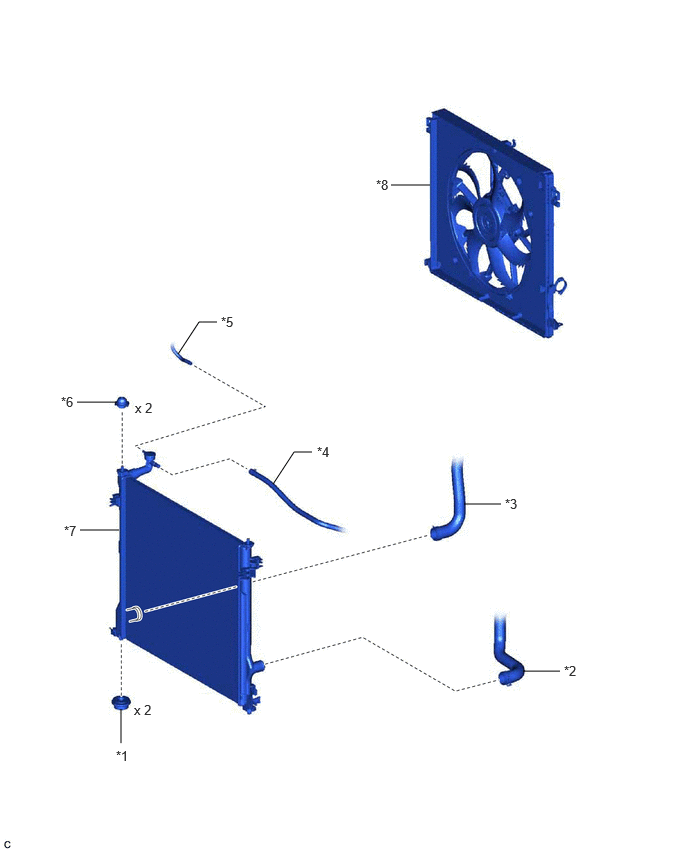

Fig 5: Radiator Replacement Components [09/2020 - 10/2022] (5 Of 5)

Callout	Description	Callout	Description
*1	LOWER RADIATOR SUPPORT	*2	NO. 3 RADIATOR HOSE
*3	NO. 2 RADIATOR HOSE	*4	NO. 4 WATER BY-PASS HOSE
*5	NO. 6 WATER BY-PASS HOSE	*6	RADIATOR SUPPORT CUSHION
*7	RADIATOR ASSEMBLY	*8	FAN WITH MOTOR ASSEMBLY
