Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

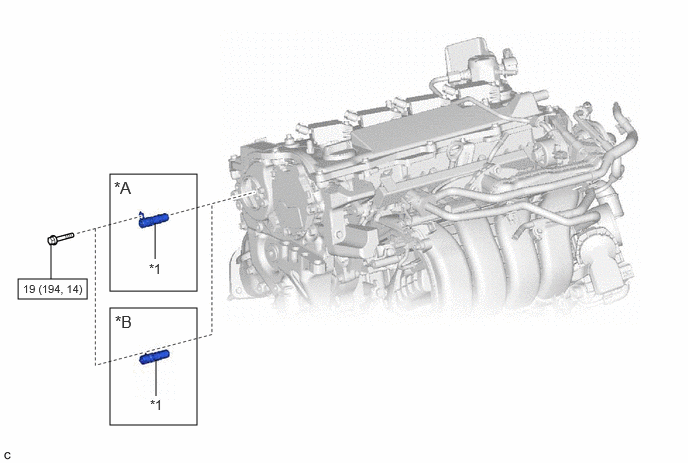

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY948665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) - -
N.m (kgf/cm, ft.lbf): Specified torque - -
