Removal [12/2019 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to REMOVAL [12/2019 - ]
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)
- Using a 5 mm hexagon socket wrench, remove the bolt.

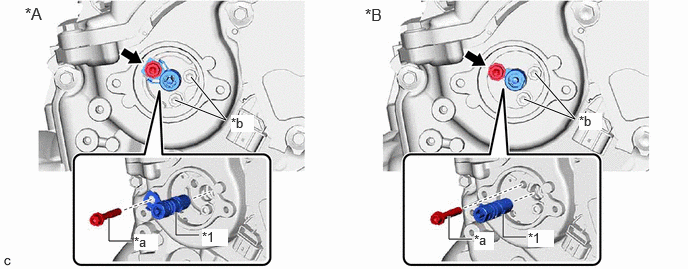

*A Type A *B Type B *1 Camshaft Timing Oil Control Valve Assembly (Exhaust Camshaft Timing Gear Bolt Assembly) - - *a Bolt *b Do not remove NOTE:Do not remove the other 2 bolts.
HINT:
If it is difficult to loosen the bolt due to the tools contacting the vehicle body or other parts, rotate the crankshaft to move the bolt to a position where it can be removed easily.
- Remove the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) from the camshaft timing exhaust gear assembly.
- Using a 5 mm hexagon socket wrench, remove the bolt.
