Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

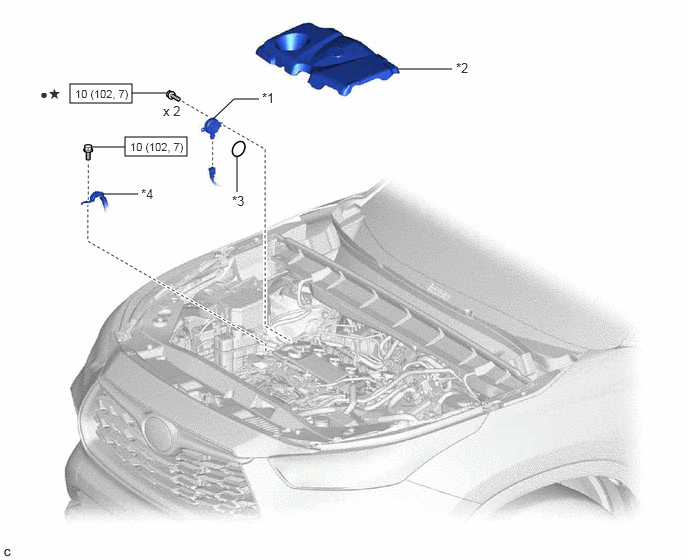

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications
GTY905625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 O-RING *4 NO. 2 EARTH WIRE
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
