Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Camshaft Timing Control Motor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY SERVICE HOLE COVER	-	-

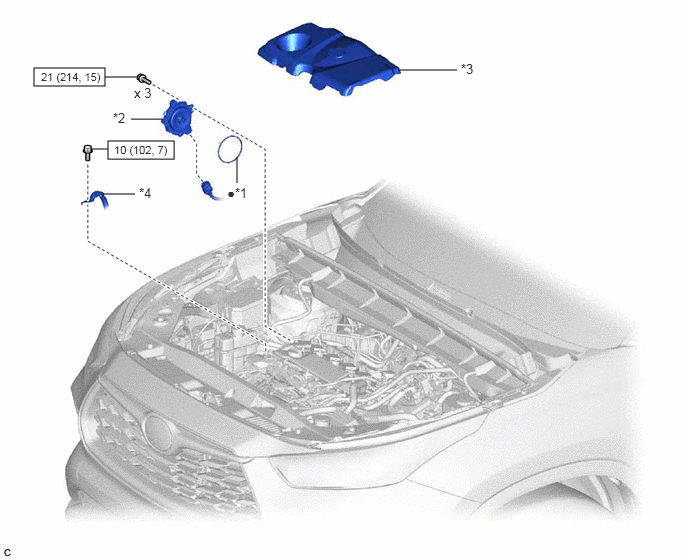

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	CAM TIMING CONTROL MOTOR O-RING	*2	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	*4	NO. 2 EARTH WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
