Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 1

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  4. SEPARATE NO. 2 EARTH WIRE

    See step  2

  5. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
    1. Disconnect the cam timing control motor with EDU assembly connector.

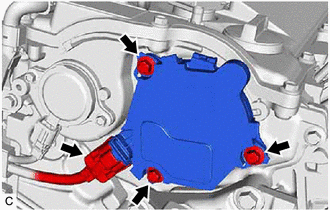

      GTY771562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and cam timing control motor with EDU assembly from the No. 2 timing gear cover assembly.
      NOTE:

      If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

  6. REMOVE CAM TIMING CONTROL MOTOR O-RING
    1. Remove the cam timing control motor O-ring from the No. 2 timing gear cover assembly.

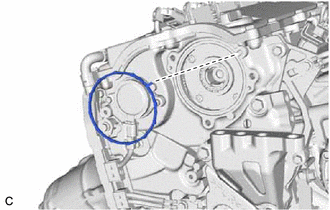

      GTY754319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
