Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: ECM Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY SERVICE HOLE COVER	-	-

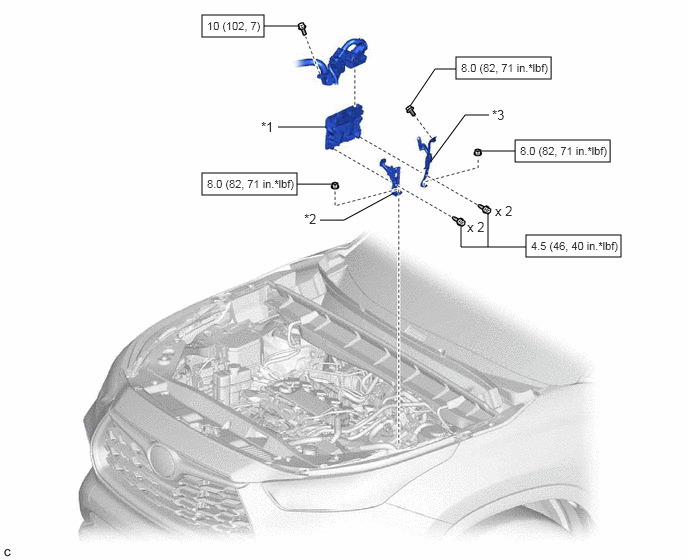

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ECM	*2	NO. 1 ECM BRACKET
*3	NO. 2 ECM BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
