Components [11/2023 - ]
WARNING: This page is about a different variant/trim than selected.

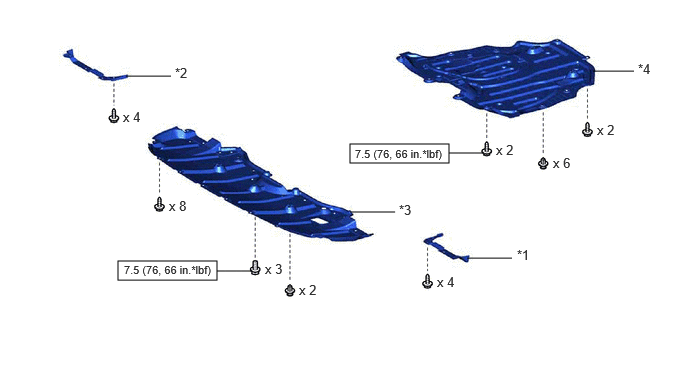

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [11/2023 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

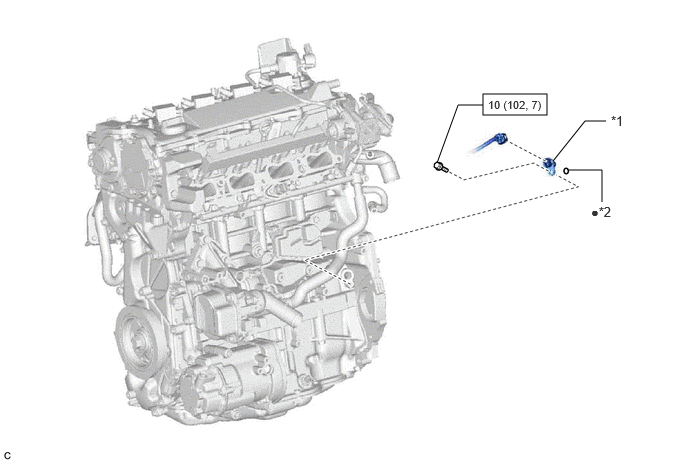

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications [11/2023 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT POSITION SENSOR | *2 | O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
