Components [12/2019 - 10/2022]

WARNING: This page is about a different variant/trim than selected.

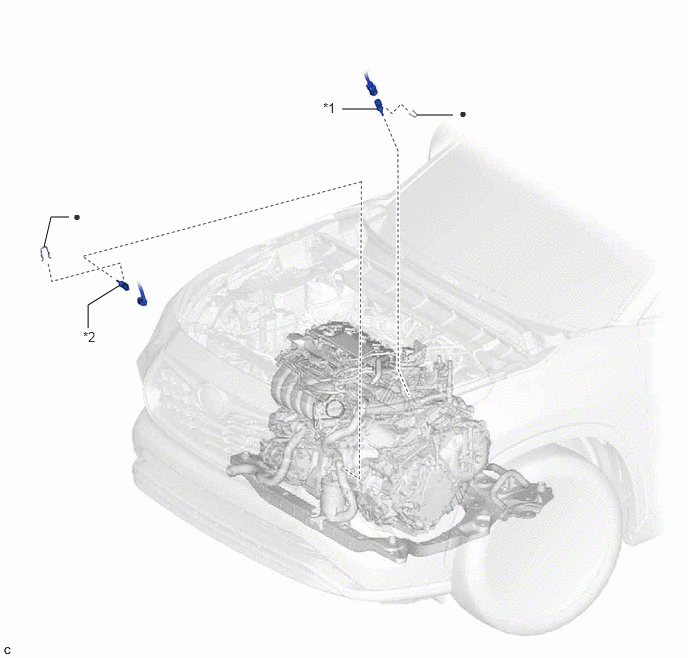

Fig 1: Engine Coolant Temperature Sensor Replacement Components [12/2019 - 10/2022]
GTY849516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 NO. 2 ENGINE COOLANT TEMPERATURE SENSOR
Non-reusable part - -
