Removal [10/2021 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [10/2021 - ]

  2. REMOVE KNOCK CONTROL SENSOR

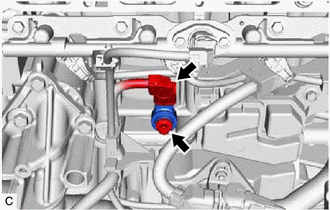

    1. Disconnect the knock control sensor connector.
      GTY762819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock control sensor from the cylinder block sub-assembly.
      NOTE:

      If the knock control sensor has been struck or dropped, replace it.
